Honda Pilot: CKP Sensor Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / CKP Sensor Removal and Installation
Removal and Installation

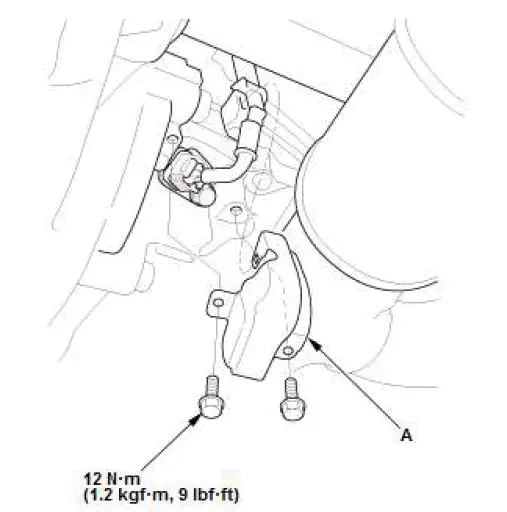

1. CKP Sensor Cover - Remove
- Remove the CKP sensor cover (A).

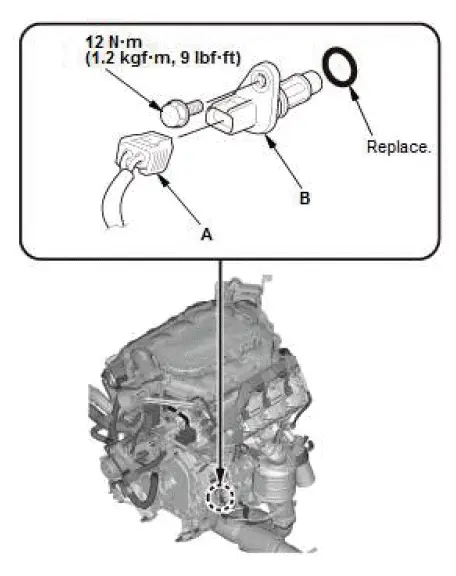

2. CKP Sensor - Remove
- Disconnect the connector (A).
- Remove the CKP sensor (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal with a new O-ring.
4. CKP Pattern - Clear/Learn
Climate Control Unit Removal and Installation
Removal/Installation
1. Dashboard Center Middle Trim - Remove

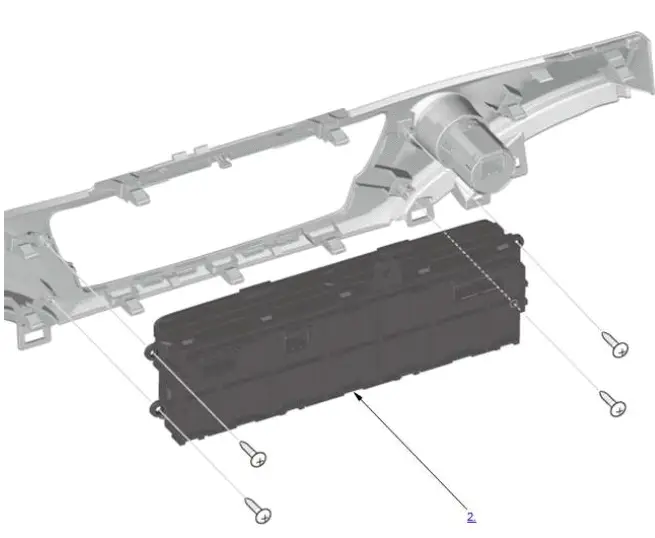

2. Climate Control Unit - Remove
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
