Honda Pilot: Climate Control Unit Connector for Inputs and Outputs
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Connector input and output Info / Climate Control Unit Connector for Inputs and Outputs
Connector Index

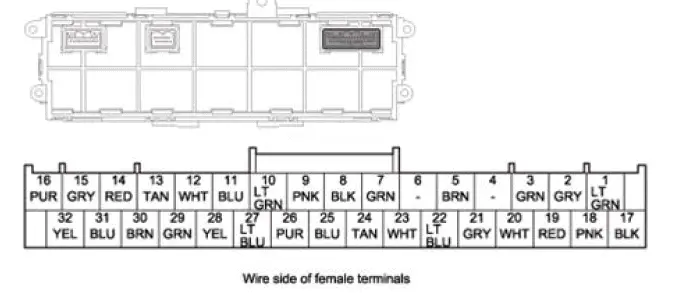

Climate Control Unit Connector A (32P)

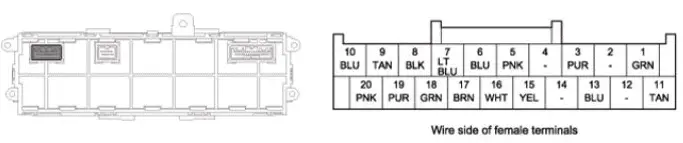

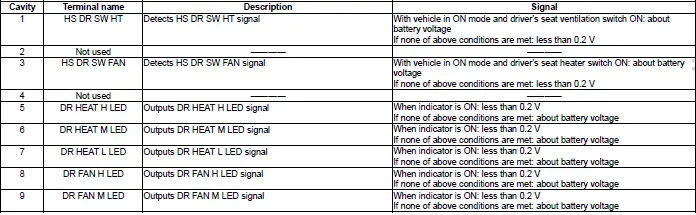

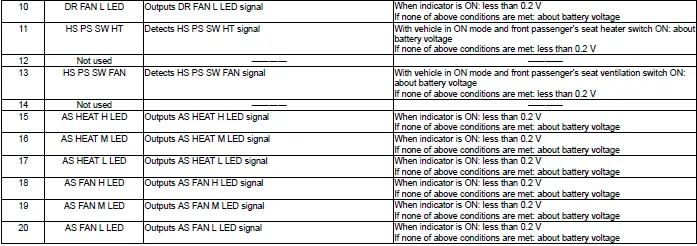

Climate Control Unit Connector B (20P)*

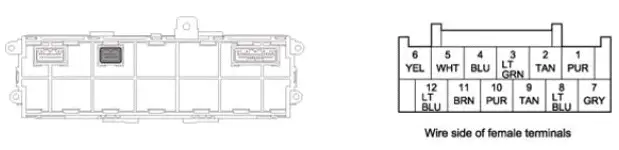

Climate Control Unit Connector C (12P)
*: With ventilated seat

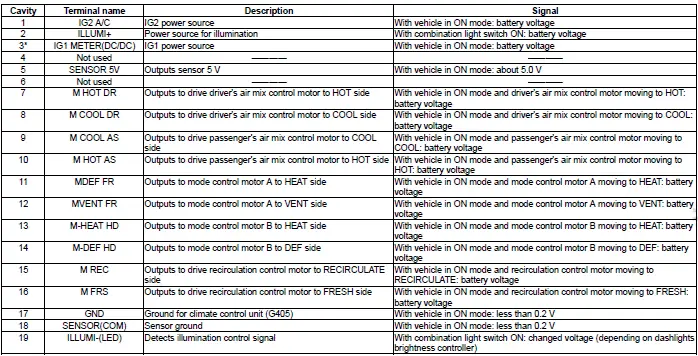

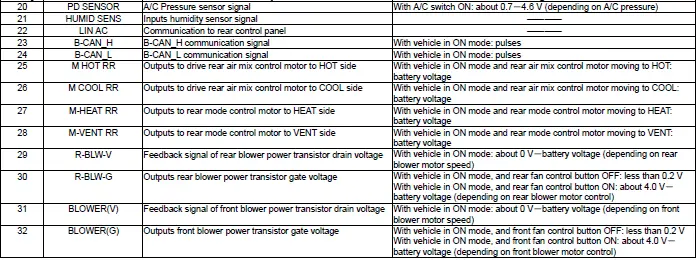

Climate Control Unit Connector A (32P)
*: With auto idle stop system
Climate Control Unit Connector B (20P)

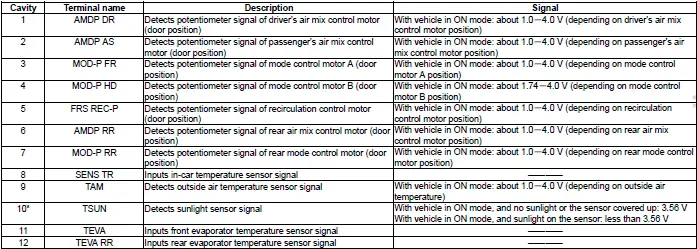

Climate Control Unit Connector C (12P)
*: With rain sensor
