Honda Pilot: BD Player Unit Connector for Inputs and Outputs
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Connector input and output Info / BD Player Unit Connector for Inputs and Outputs
Connector Index
BD Player Unit Connector A (12P)
BD Player Unit Connector B (2P)
BD Player Unit Connector C (20P)

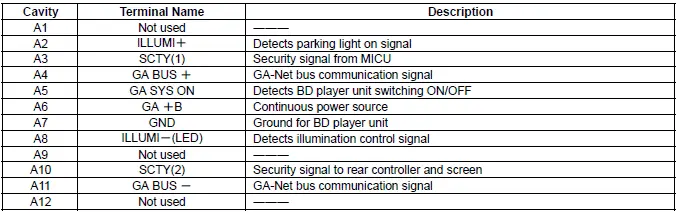

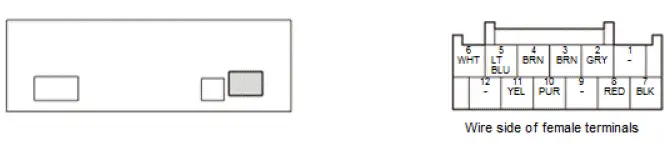

BD PLAYER UNIT CONNECTOR A (12P)

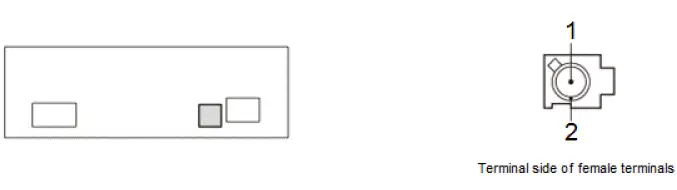

BD PLAYER UNIT CONNECTOR B (2P)

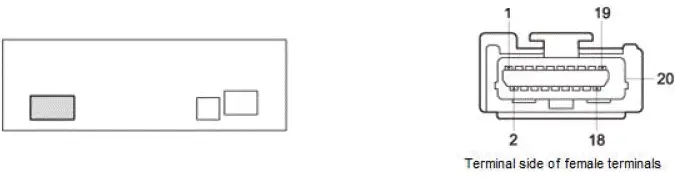

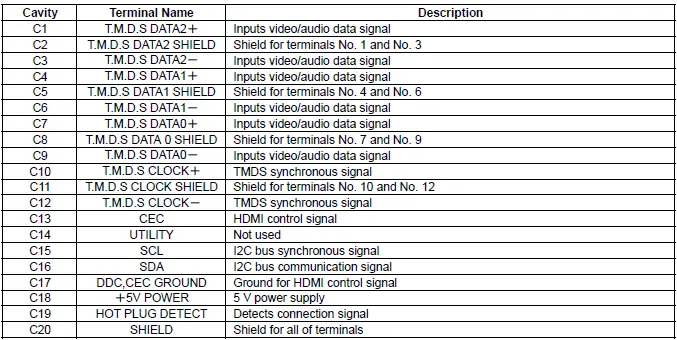

BD PLAYER UNIT CONNECTOR C (20P)
CD Player Unit Connector for Inputs and Outputs

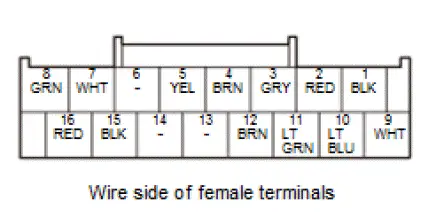

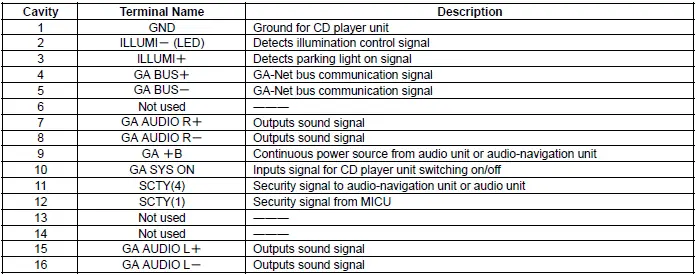

CD PLAYER UNIT 16P CONNECTOR
