Honda Pilot: Connecting Rod and Crankshaft End Play Inspection

Inspection

1. Engine/Transmission - Remove

2. Transmission - Remove

3. Drive Plate - Remove

4. Cylinder Head - Remove

5. Oil Strainer - Remove

6. Baffle Plate - Remove

7. Oil Pump - Remove

8. Connecting Rod and Crankshaft End Play - Inspect

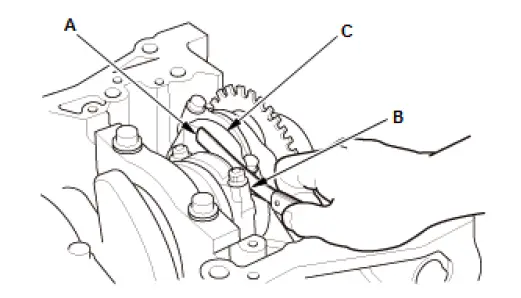

1. Measure the connecting rod end play with a feeler gauge (A) between the connecting rod (B) and the crankshaft (C).

Connecting Rod End Play

  Standard (New): 0.15－0.35 mm (0.005－0.013 in)

  Service Limit: 0.45 mm (0.017 in)

2. If the connecting rod end play is beyond the service limit, install a new connecting rod, and recheck. If it is still beyond the service limit, replace the crankshaft.

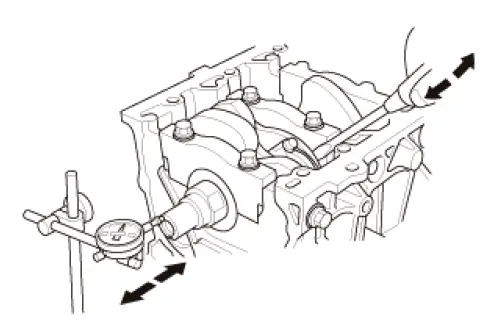

3. Push the crankshaft firmly away from the dial indicator by prying, and zero the dial against the end of the crankshaft.

   Then pull the crankshaft firmly back toward the indicator by prying; the dial reading should not exceed the service limit.

Crankshaft End Play

  Standard (New): 0.10－0.35 mm (0.0039－0.0138 in)

  Service Limit: 0.45 mm (0.0177 in)

4. If the crankshaft end play is beyond the service limit, replace the thrust washers and recheck. If it is still beyond the service limit, replace the crankshaft.

9. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Special Tool Required

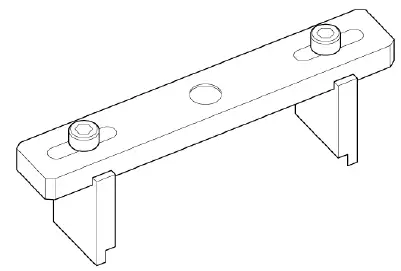

• Clutch Compressor Attachment 07ZAE-PRP0100
