Honda Pilot: Door Outer Handle Lock Switch Test
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Parts Test Info / Door Outer Handle Lock Switch Test
Test
1. Front Door Panel - Remove
2. Front Door Outer Handle Lock Switch - Test

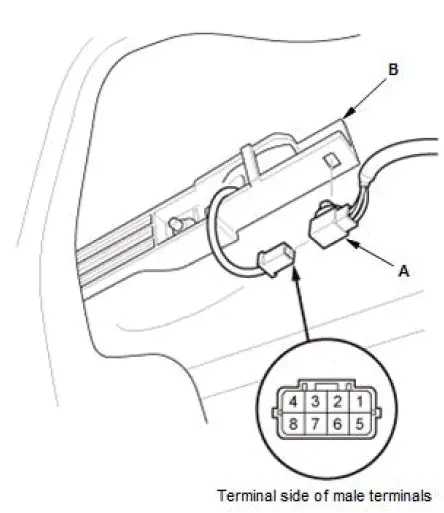

- Disconnect the connector (A).

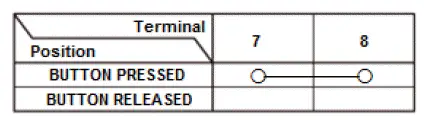

- Check for continuity between the terminals in each switch position according to the table.
- If the continuity is not as specified, the front door outer handle lock switch is faulty; replace the front door outer handle (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
