Honda Pilot: Driver's Power Seat Adjustment Switch Test

Test

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Driver's Seat Recline Cover - Remove

NOTE: If you are removing the driver's seat recline cover, you do not need to remove the driver's seat.

2. Driver's Power Seat Adjustment Switch - Test

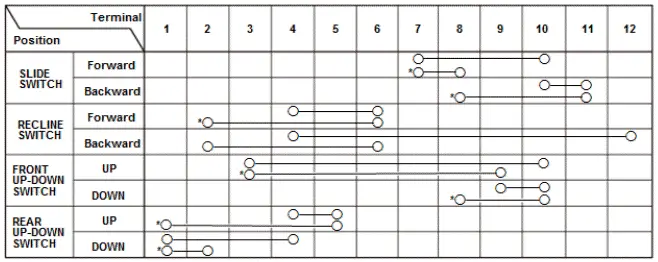

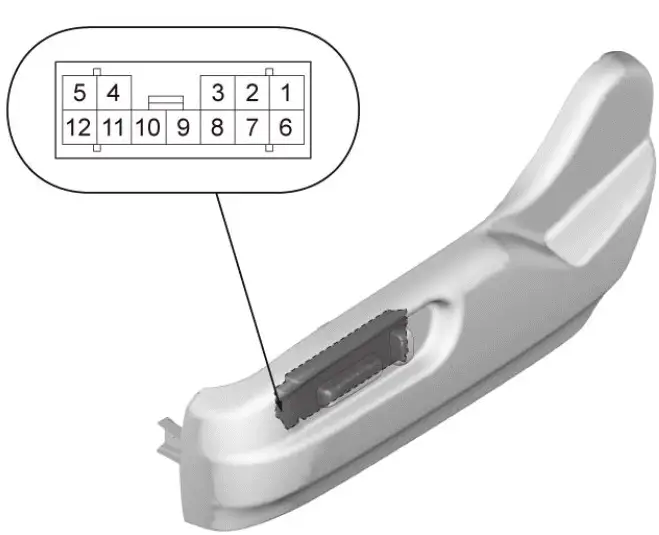

1. Check for continuity between the terminals in each switch position according to the table.

*: There is continuity without operating a switch.

2. If the continuity is not as specified, replace the driver's power seat adjustment switch.

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
