Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Inspection Info / Drive Belt Auto-Tensioner Inspection

Inspection

1. Drive Belt Auto-Tensioner Position - Check

Honda Pilot. Inspection Info

  1. Turn the vehicle to the ON mode, and make sure to turn the A/C switch OFF, then turn the vehicle to the OFF (LOCK) mode.

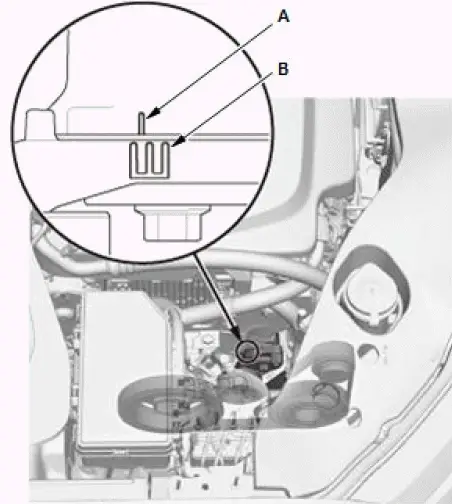

  2. Check the position of the drive belt auto-tensioner indicator pointer (A) and the indicator (B).
  3. Start the engine, then check the position again with the engine idling. If the position of the indicator moves or fluctuates a lot, replace the drive belt auto-tensioner.
  4. Check for abnormal noise from the tensioner pulley. If you hear any abnormal noise, replace the drive belt auto-tensioner.

2. Drive Belt - Remove

3. Drive Belt Auto-Tensioner - Inspect (In Car)

Honda Pilot. Inspection Info

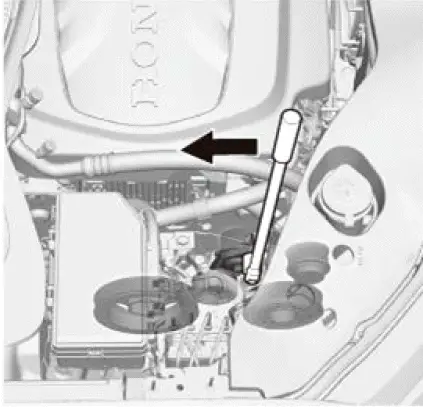

  1. Move the drive belt auto-tensioner within its limit using a wrench in the direction of the arrow. Check that the drive belt auto-tensioner moves smoothly and without any abnormal noise. If the drive belt auto-tensioner does not move smoothly, or if you hear any abnormal noise, replace the drive belt auto-tensioner.

4. Drive Belt Auto-Tensioner - Remove

5. Drive Belt Auto-Tensioner - Inspect

Honda Pilot. Inspection Info

Honda Pilot. Inspection Info

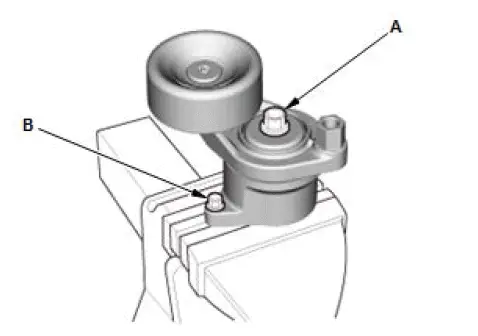

  1. Clamp the drive belt auto-tensioner by using a 10 mm bolt (A), a 6 mm bolt (B) and a vise as shown. Do not clamp the drive belt auto-tensioner itself.

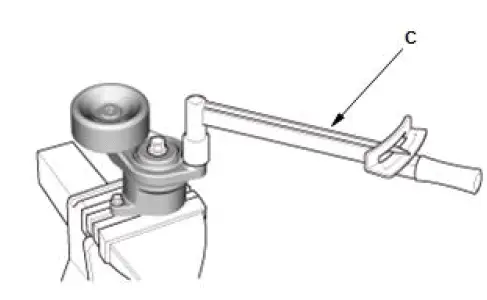

  2. Set the torque wrench (C) as shown.
  3. Measure the torque when the drive belt auto-tensioner is turned counterclockwise. If the torque is less than the specified value, replace the drive belt auto-tensioner.

Drive Belt Auto-Tensioner Spring Torque 5.0-35 N-m (0.51-3.6 kgf-m, 3.7-26 lbf-ft)

6. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
