Honda Pilot: Driver's Airbag Removal and Installation

Removal/Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE: If replacing the driver's airbag after deployment, refer to Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.

1. 12 Volt Battery Terminal - Disconnect

NOTE: Wait at least 3 minutes before starting work.

2. Driver's Airbag - Remove

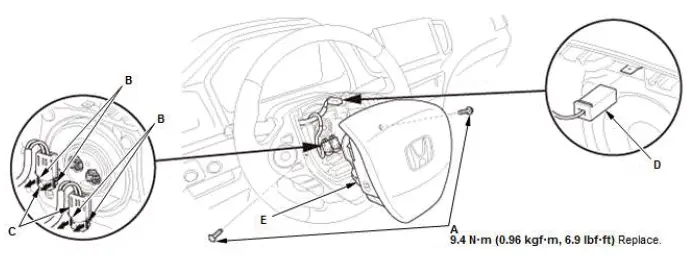

1. Remove the bolts (A).

2. Pull up on both locking tabs (B) to disconnect the connectors (C).

   NOTE: Be careful not to damage the connectors.

3. Disconnect the connector (D).
4. Remove the driver's airbag (E).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE:

• During installation, install the new bolts to the specified torque.

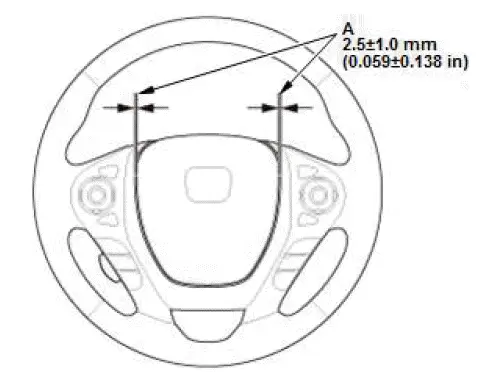

• Make sure the clearance (A) between the steering wheel and horn pad is the specified value.
• After connecting the negative cable to the 12 volt battery, make sure the horn works properly.

4. SRS Operation - Confirm

1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
