Honda Pilot: Drive Plate Removal and Installation

Removal/Installation

1. Transmission Assembly - Remove

2. Drive Plate Assembly - Remove

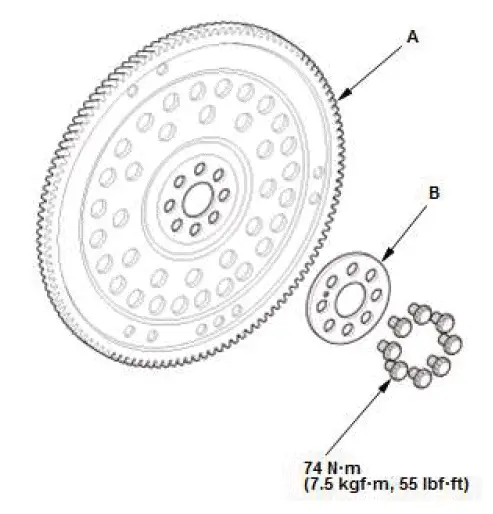

1. Remove the drive plate (A) and the washer (B).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

   NOTE: Tighten the eight bolts in a crisscross pattern in at least two steps.

Drive Plate Removal and Installation

Removal and Installation

1. Transmission Assembly - Remove

2. Drive Plate Assembly - Remove

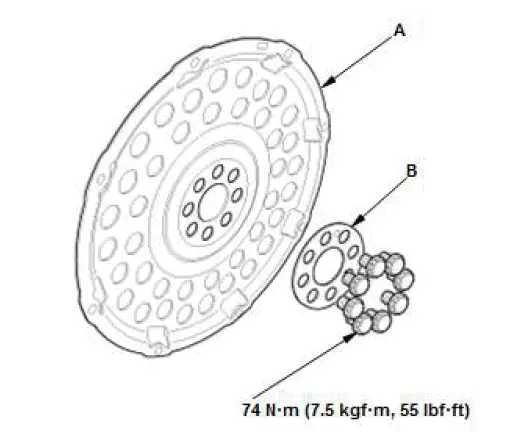

1. Remove the drive plate (A) with the washer (B).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

   NOTE: Tighten eight bolts in a crisscross pattern in at least two steps.
