Honda Pilot: Driver's Power Tailgate Switch Test

Test

1. Driver's Door Panel - Remove

2. Driver's Power Tailgate Switch - Test

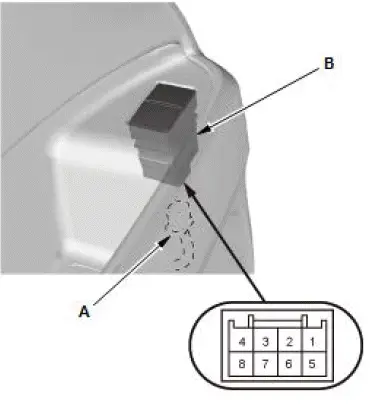

1. Disconnect the connector (A).

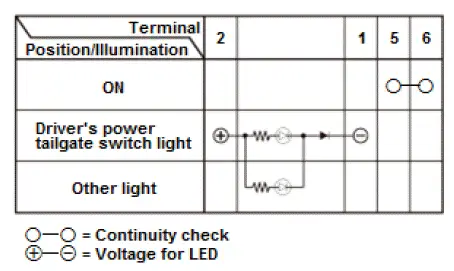

2. Check the driver's power tailgate switch (B) for continuity and voltage according to the table.

NOTE:

• When an LED is located between terminals, check if the LED lights up by connecting power and ground to the LED.
• Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the continuity is not as specified, replace the driver's power tailgate switch.

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
