Honda Pilot: EGR Pipe Removal and Installation

Removal/Installation

EGR Pipe A

1. Engine Cover - Remove

2. Front Bulkhead Cover - Remove

3. Splash Shield - Remove

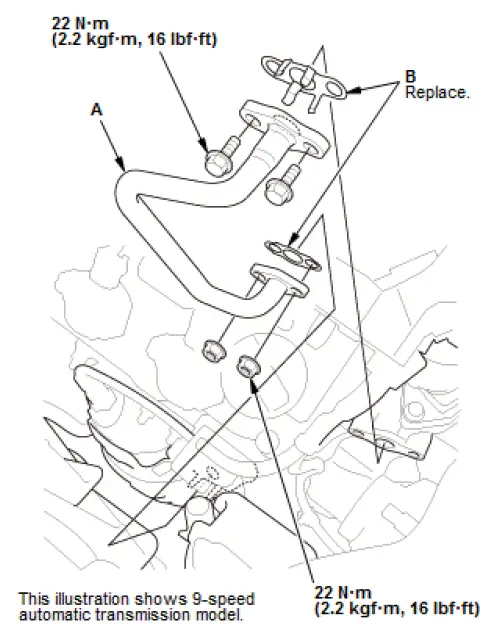

4. EGR Pipe A - Remove

1. Remove the EGR pipe A and gaskets (B).

5. All Removed Parts - Install

1. Install the parts in the reverse order of removal with new gaskets.

Removal/Installation

EGR Pipe B

1. Engine Cover - Remove

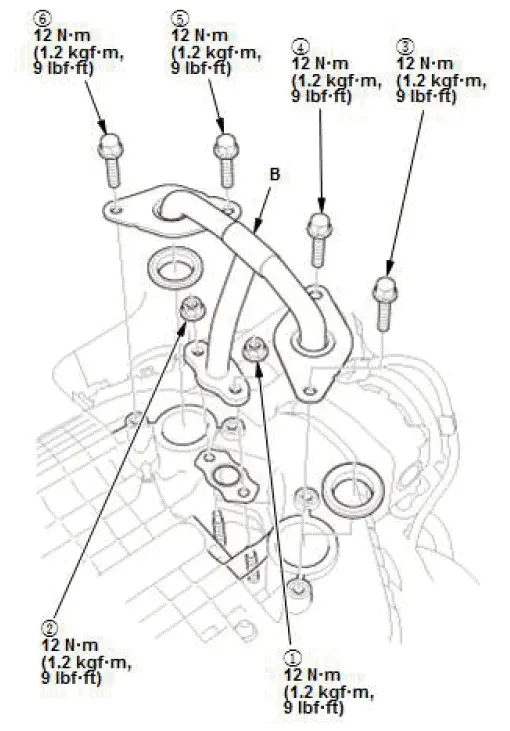

2. EGR Pipe B - Remove

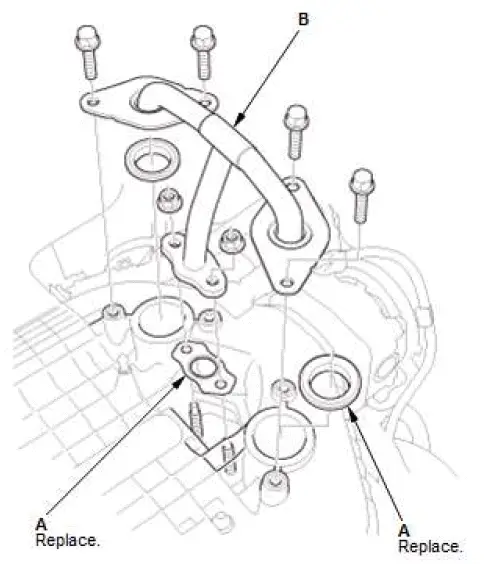

1. Remove the EGR pipe B and gaskets (A).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal with new gaskets.

EGR Valve Removal and Installation

Removal and Installation

1. Engine Cover - Remove

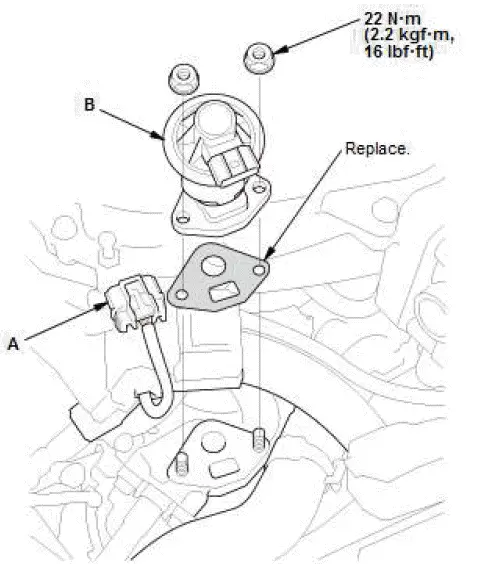

2. EGR Valve - Remove

1. Disconnect the connector (A).
2. Remove the EGR valve (B).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal with a new gasket.

Electrical Compass Unit Removal and Installation

Removal/Installation

1. Headliner - Remove

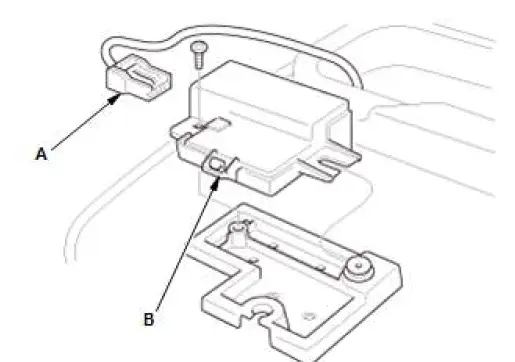

2. Electrical Compass Unit - Remove

1. Disconnect the connector (A).
2. Remove the electrical compass unit (B).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE: If you replaced the electrical compass unit, set the compass zone.
