Honda Pilot: ECT Sensor 1 Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / ECT Sensor 1 Removal and Installation

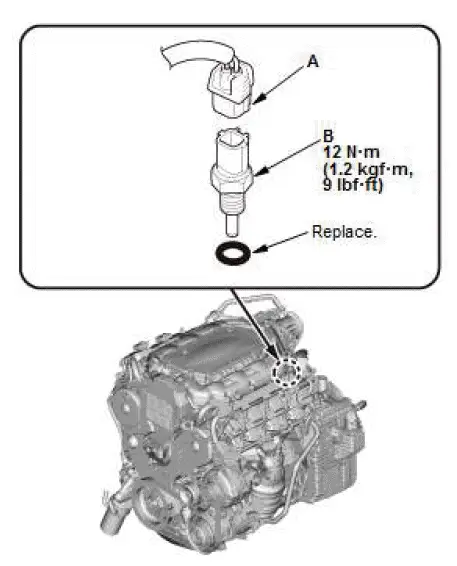

Removal/Installation
1. Engine Cover - Remove
2. Engine Coolant - Drain
3. ECT Sensor 1 - Remove
- Disconnect the connector (A).
- Remove the ECT sensor 1 (B).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal with a new O-ring.

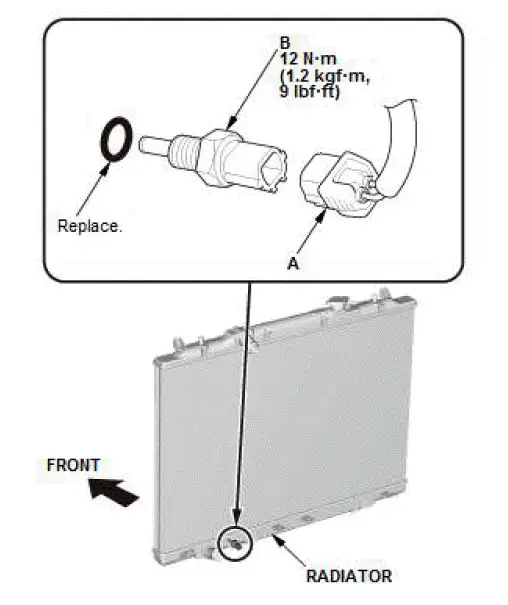

ECT Sensor 2 Removal and Installation
Removal/Installation
1. Splash Shield - Remove
2. Engine Coolant - Drain
3. ECT Sensor 2 - Remove
- Disconnect the connector (A).
- Remove the ECT sensor 2 (B).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal with a new O-ring.
