Honda Pilot: Engine Oil Jet Bolt Inspection

Inspection

1. Oil Jet Bolt - Remove

2. Oil Jet Bolt - Inspect

1. Inspect the oil jet bolt as follows:

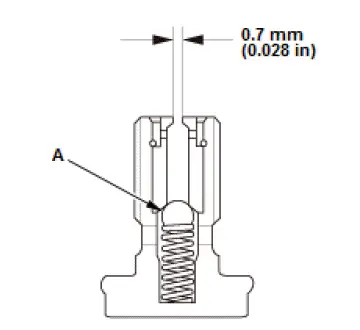

• Make sure that a 0.6 mm (1/64 in) diameter drill bit will go through the oil intake (0.7 mm (0.028 in) diameter).

  Make sure the check ball (A) moves smoothly and has a stroke of about 4.0 mm (0.157 in).

• Check the oil jet bolt operation with an air nozzle. It should take at least 314 kPa (3.20 kgf/cm2, 45.5 psi) to unseat the check ball.

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
