Honda Pilot: Exterior Lights Bulb Removal and Installation

Removal/Installation

Headlight (Low Beam) (Without LED Headlight)

1. Front Bulkhead Cover - Remove

2. Air Intake Tube - Remove (Left side)

3. Headlight (LOW Beam) - Remove

Headlight (LOW Beam): 55 W

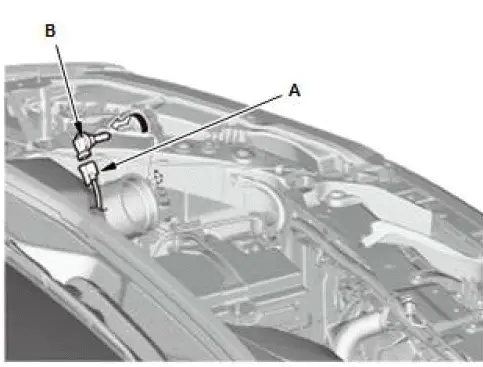

1. Disconnect the connector (A).
2. Turn the bulb (B) counterclockwise to remove it from the housing.

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Headlight (High Beam)

1. Front Bulkhead Cover - Remove

2. Air Intake Tube - Remove (Left Side)

3. Headlight (High Beam) - Remove

Headlight (High Beam): 60 W

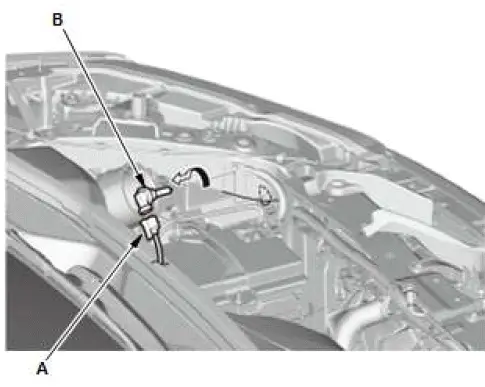

1. Disconnect the connector (A).
2. Turn the bulb (B) counterclockwise to remove it from the housing.

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Front Turn Signal Light

1. Front Turn Signal Light Bulb - Remove

Front Turn Signal Light: 21W

Front Parking/Turn Signal light: 28W/8W

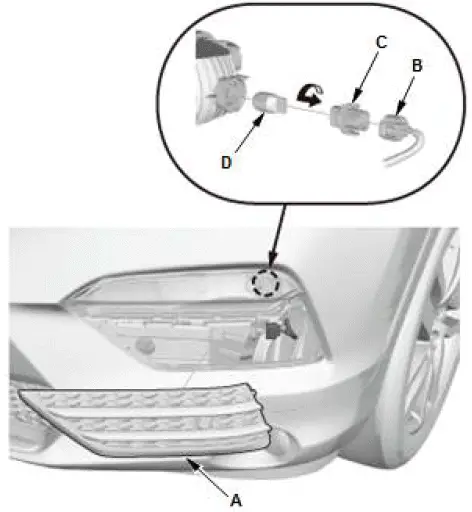

1. Remove the front bumper side trim (A).
2. Disconnect the connector (B).
3. Turn the bulb socket (C) counterclockwise to remove the bulb (D).

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Back-Up Light

1. Back-Up Light Bulb - Remove

Back-Up Light: 21 W

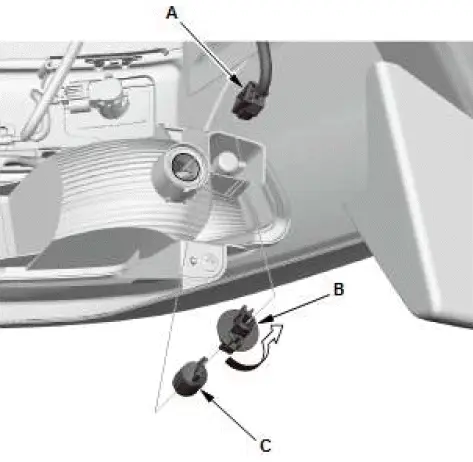

1. Disconnect the connector (A).
2. Turn the bulb socket (B) counterclockwise to remove the bulb (C).

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Rear Turn Signal Light

1. Taillight - Remove

2. Rear Turn Signal Light Bulb - Remove

Rear Turn Signal Light: 21 W

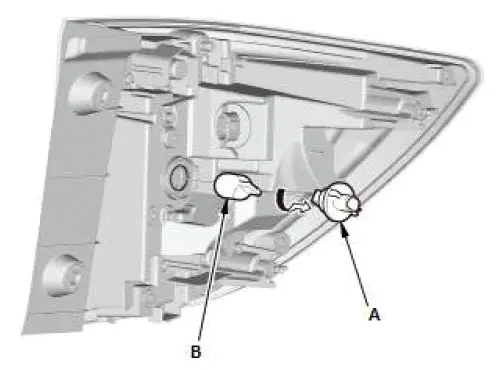

1. Turn the bulb socket (A) counterclockwise to remove the bulb (B).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
