Honda Pilot: Fog Light Removal and Installation

Removal/Installation

1. Front Inner Fender - Remove

1. Remove the front inner fender as needed.

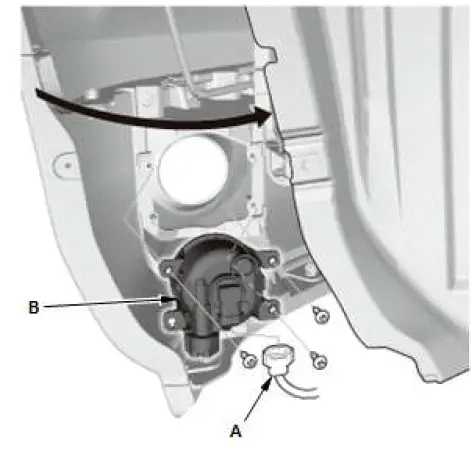

2. Fog Light - Remove

1. Disconnect the connector (A).
2. Remove the front fog light (B).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

4. Fog Light - Adjust

Footwell Light Removal and Installation

Removal/Installation

Driver's Side

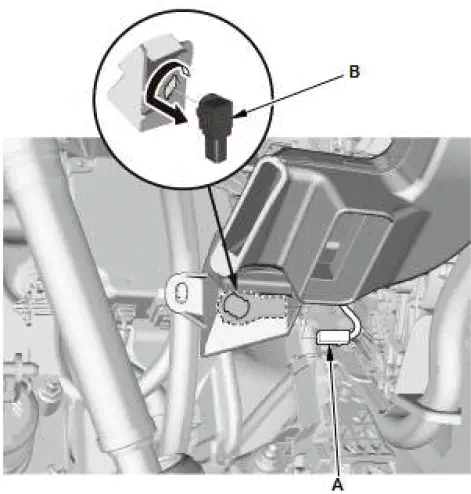

1. Driver's Footwell Light - Remove

Driver's Footwell Light: LED

1. Disconnect the connector (A).
2. Remove the driver's footwell light (B).

2. All Parts Removed - Install

1. Install the parts in the reverse order of removal.

Passenger's Side

1. Passenger's Dashboard Undercover - Remove

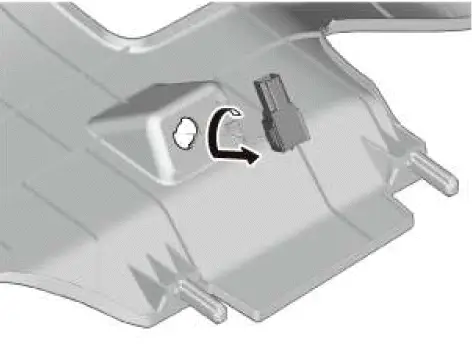

2. Front Passenger's Footwell Light - Remove

Front Passenger's Footwell Light: LED

3. All Parts Removed - Install

1. Install the parts in the reverse order of removal.
