Honda Pilot: Front Bulkhead Brace Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Front Bulkhead Brace Removal and Installation
Removal/Installation
1. Front Bulkhead Cover - Remove
2. Air Intake Tube - Remove
3. Battery - Remove

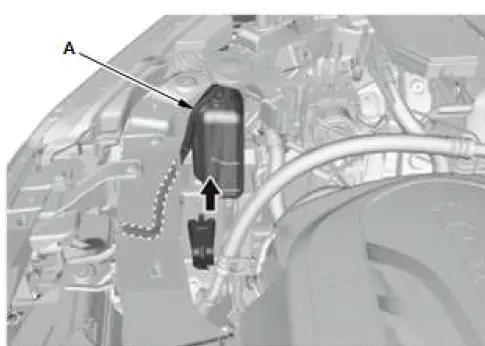

4. Coolant Reservoir - Remove
- Remove the coolant reservoir (A).

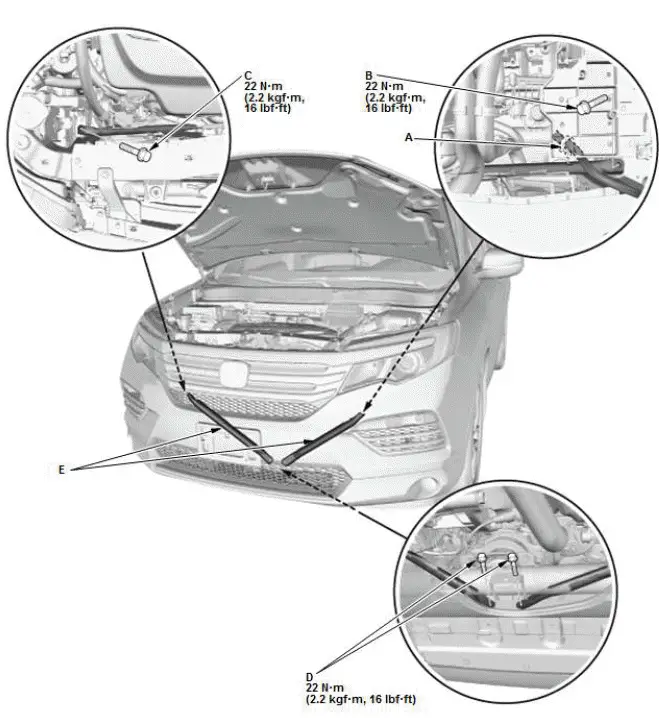

5. Front Bulkhead Brace - Remove
- Remove the harness clamp (A) from the front bulkhead brace.
- Remove the bolts (B, C).
- Remove the bolts (D).
- Remove the front bulkhead brace (E).
6. All Removed Parts - Install
- Install the parts in the reverse order of removal.
