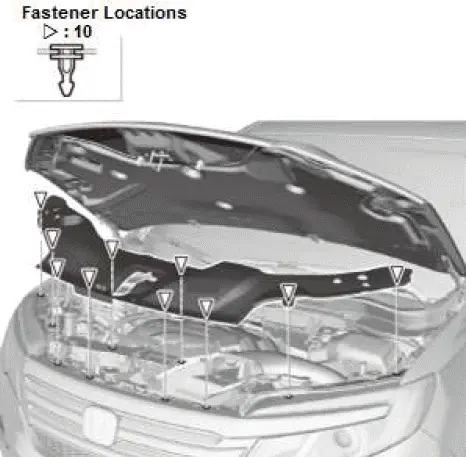

Honda Pilot: Front Bulkhead Cover Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Front Bulkhead Cover Removal and Installation
Removal/Installation
1. Front Bulkhead Cover - Remove
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.

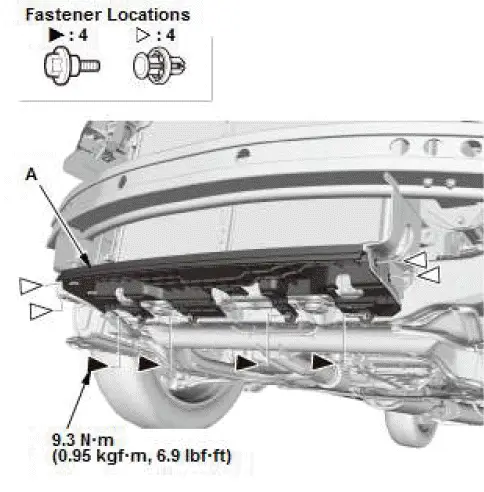

Front Bumper Air Screen Removal and Installation
Removal/Installation
1. Front Bumper - Remove
2. Front Bumper Air Screen - Remove
- Remove the front bumper air screen (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
