Honda Pilot: Front Bumper Center Upper Beam Removal and Installation

Removal/ Installation

1. Front Bulkhead Cover - Remove

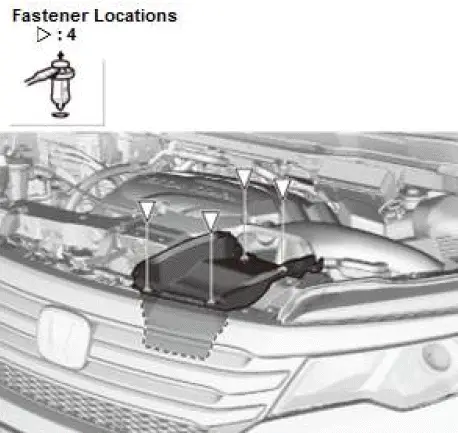

2. Intake Air Guide - Remove

3. Front Bumper - Remove

4. Front Center Upper Beam A - Remove

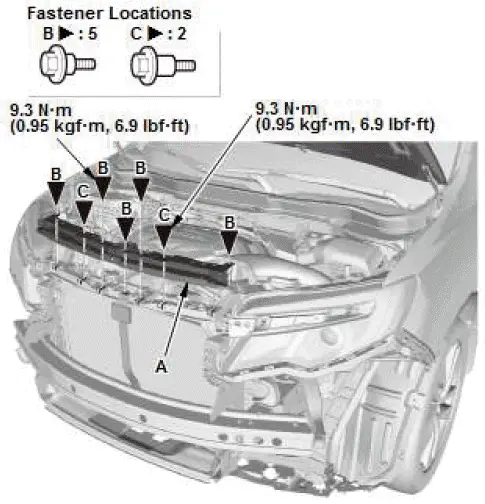

With Millimeter Wave Radar

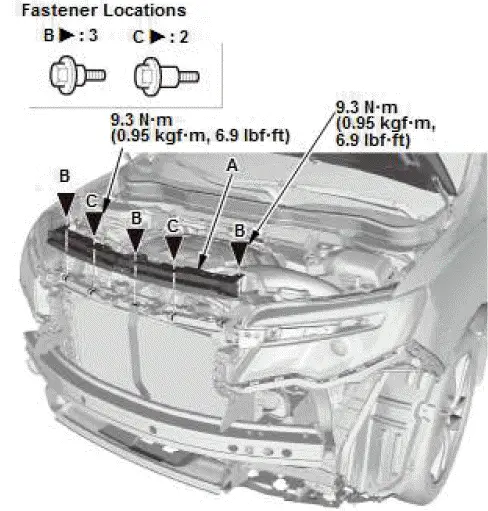

Without Millimeter Wave Radar

1. Remove the front center upper beam A.

5. Front Center Upper Beam B - Remove

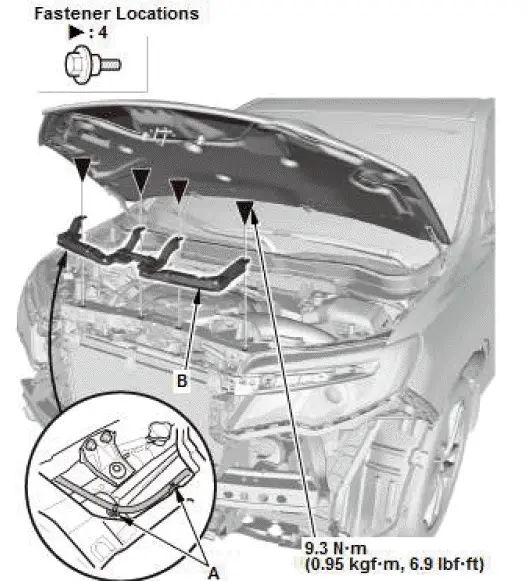

1. Release the harness clamps (A) (for some models).
2. Remove the front center upper beam B.

6. Millimeter Wave Radar Assembly - Remove (For Some Models)

7. Center Mount Support Bracket - Remove

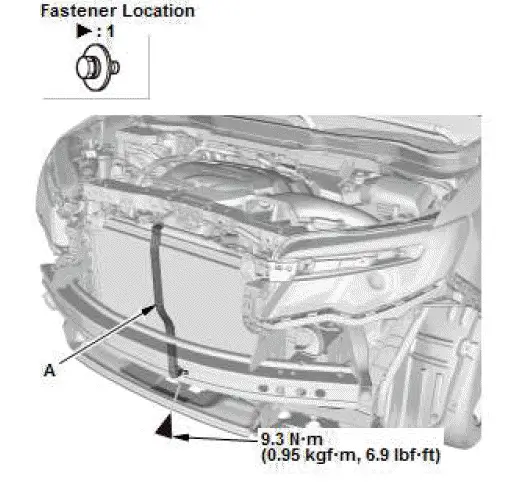

1. If necessary, remove the center mount support bracket (A).

8. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
