Honda Pilot: Front Bumper Lower Trim Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Front Bumper Lower Trim Removal and Installation
Removal/Installation
1. Front Bumper - Remove
2. Front Bumper Lower Trim - Remove

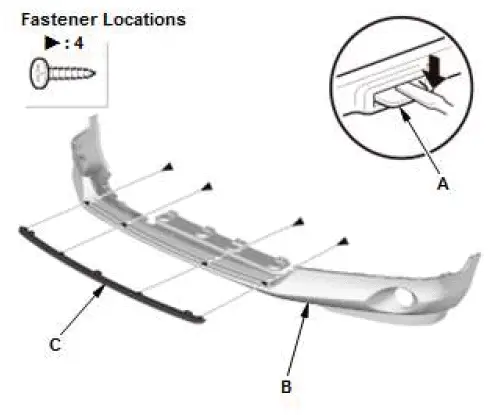

- Remove the screws.
- Release the hooks (A) from the back of the front bumper (B), and then remove the front bumper lower trim (C).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Front Bumper Middle Grille Removal and Installation
Removal/Installation
1. Front Bumper - Remove
2. Outside Air Temperature Sensor - Remove (For Some Models)
3. Front Bumper Middle Grille - Remove
- Remove the screws, and release the hooks (A) from the back of the front bumper (B), and then remove the front bumper middle grille (C).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
