Honda Pilot: Front Corner Sensor Removal and Installation

Removal/Installation

1. Front Corner Sensor - Remove

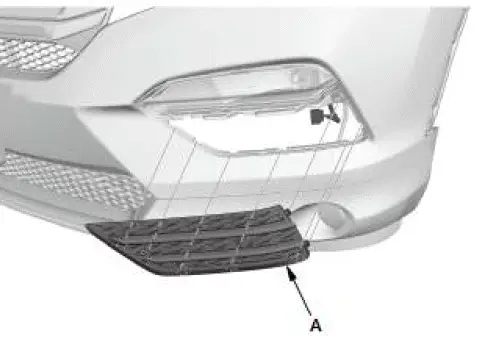

1. Remove the front bumper side trim (A).
2. Disconnect the connector.

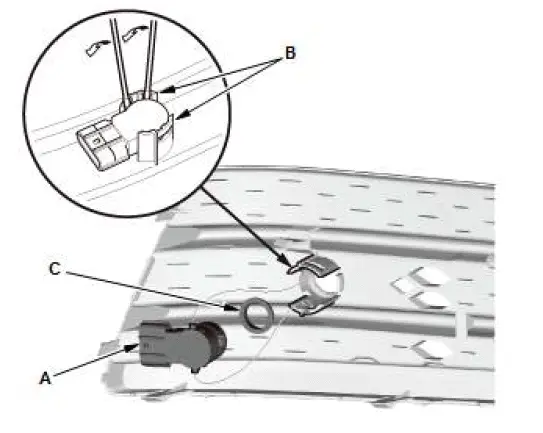

3. Remove the front corner sensor (A).

   NOTE: Do not spread the portion (B) of the front bumper lower mesh too much as it may damage the front bumper side trim.

4. Remove the ring (C).

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
