Honda Pilot: Front Fender Fairing Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Front Fender Fairing Removal and Installation
Removal/Installation
1. Front Inner Fender - Remove (as needed)
2. Front Fender Fairing - Remove

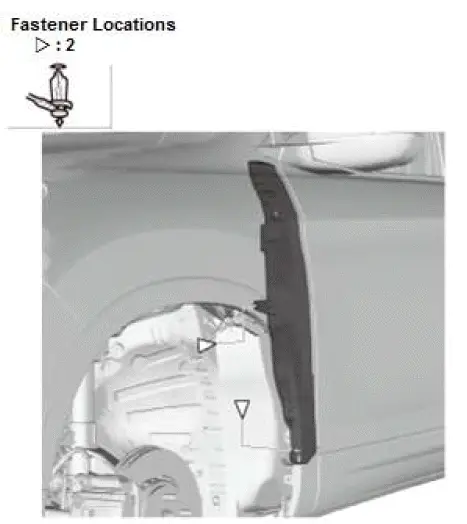

- Remove the clips.

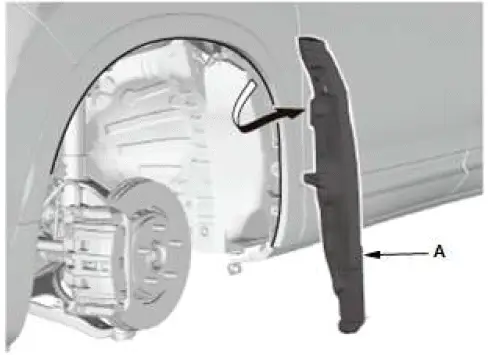

- Remove the front fender fairing (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Honda Pilot 2016-2022 (YF5/YF6) Service Manual
