Honda Pilot: Front Engine Mount Removal and Installation

Removal/Installation

1. A/C Condenser Fan Shroud Assembly and Radiator Fan Shroud Assembly - Remove

2. Engine - Support

1. Lift and support the engine with a jack and a wood block under the oil pan.

3. No. 6 Cylinder Ignition Coil - Remove

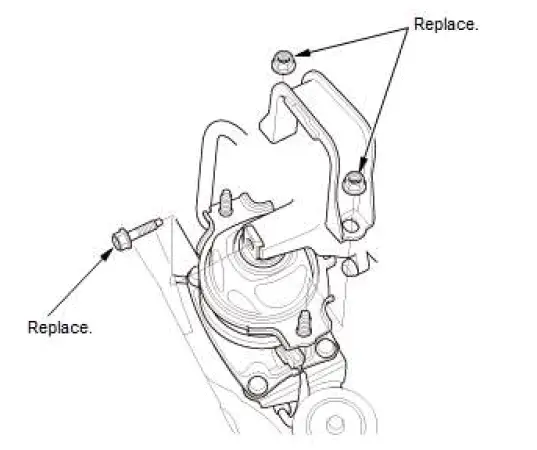

4. Front Engine Mount Stop and Front Engine Mount Mounting Bolt - Remove

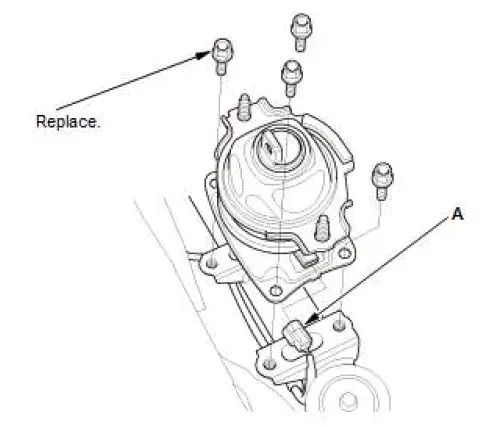

5. Front Engine Mount - Remove

1. Disconnect the connector (A).
2. Remove the front engine mount.

6. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE: Do the mounts tightening procedure before tightening all of the mounts' bolts and nuts.
