Honda Pilot: Front Passenger's Power Seat Adjustment Switch Removal and Installation

Removal/Installation

1. Front Passenger's Seat Recline Cover - Remove

NOTE: If you are removing the front passenger's seat recline cover, you do not need to remove the front passenger's seat.

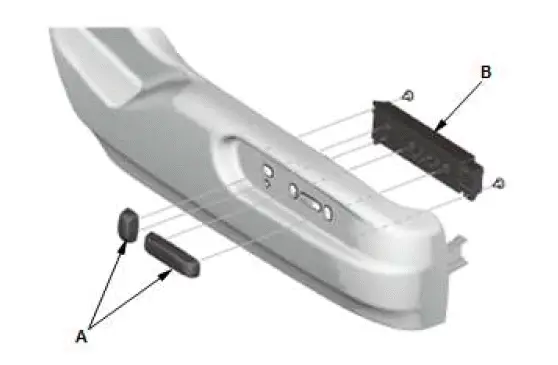

2. Front Passenger's Power Seat Adjustment Switch - Remove

1. Remove the front passenger's power seat adjustment switch knobs (A).
2. Remove the front passenger's power seat adjustment switch (B).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Front Passenger's Power Window Switch Removal and Installation

Removal/Installation

NOTE: If the switch is replaced, reset the power window control unit. If the original switch is installed, confirm that the power windows work properly.

1. Front Door Armrest - Remove

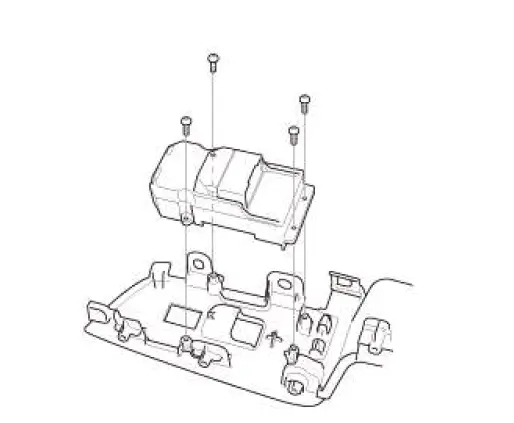

2. Front Passenger's Power Window Switch - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

4. Power Window Control Unit - Reset
