Honda Pilot: Front Passenger's Power Seat Motor Test

Test

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Passenger's Seat Recline Cover - Remove

NOTE: If you are removing the front passenger's seat recline cover, you do not need to remove the front passenger's seat.

2. Front Passenger's Power Seat Motor - Test

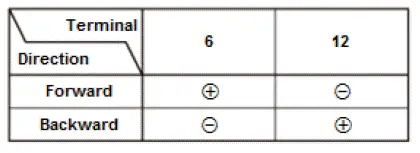

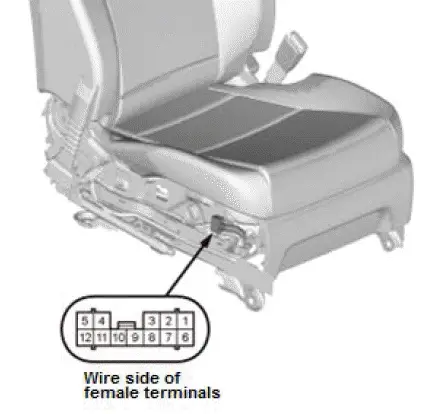

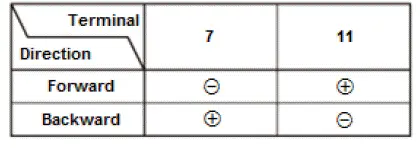

1. Test the motor by applying power and ground at the front passenger's power seat adjustment switch connector on the seat harness side according to the table. When the motor stops running, disconnect battery power immediately.
2. If the motor does not run or fails to run smoothly, test each motor:
   • Go to Slide Motor Test
   • Go to Recline Motor Test

  Slide Motor

  Recline Motor

3. Slide Motor - Test

1. Remove the front passenger's seat.
2. Disconnect the slide motor connector.

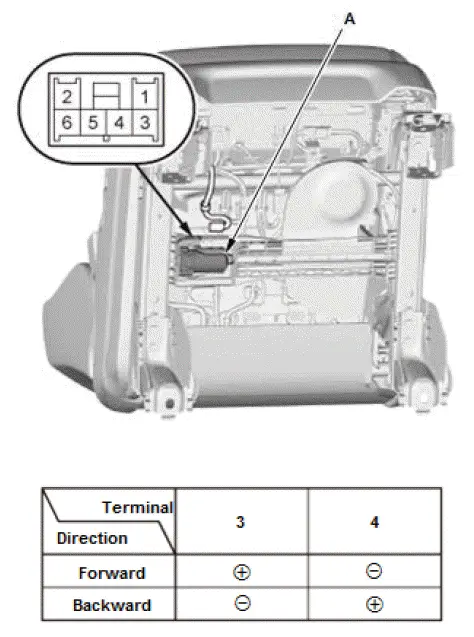

3. Test each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.
4. If the motor does not run or fails to run smoothly, the slide motor (A) is faulty; replace the slide motor/seat rail.

   NOTE: The slide motor is part of the seat rail.

4. Recline Motor - Test

1. Remove the passenger's seat-back cover/pad.
2. Disconnect the recline motor connector.

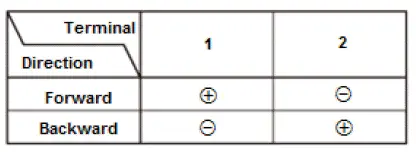

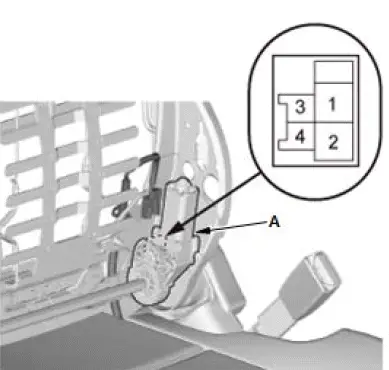

3. Test each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.
4. If the motor does not run or fails to run smoothly, the recline motor (A) is faulty; replace the recline motor/seat frame.

   NOTE: The recline motor is part of the seat frame.

5. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
