Honda Pilot: Front Passenger's Power Seat Adjustment Switch Test

Test

1. Front Passenger's Seat Recline Cover - Remove

NOTE: If you are removing the front passenger's seat recline cover, you do not need to remove the front passenger's seat.

2. Front Passenger's Power Seat Adjustment Switch - Test

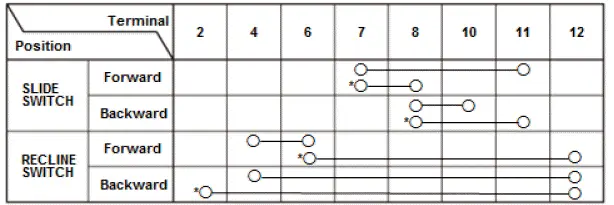

1. Check for continuity between the terminals in each switch position according to the table.

*: There is continuity without operating a switch.

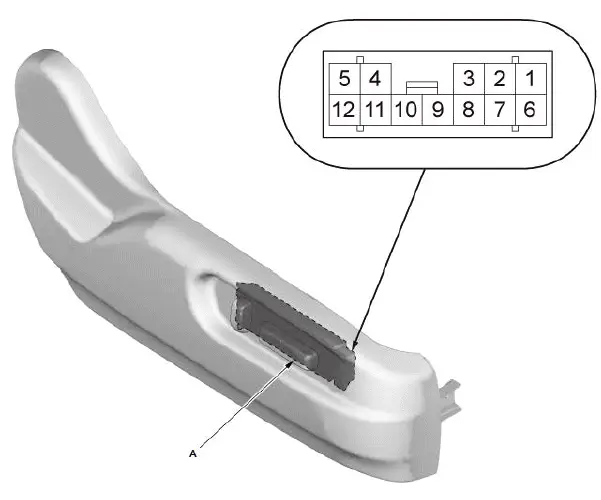

2. If the continuity is not as specified, replace the front passenger's power seat adjustment switch (A).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
