Honda Pilot: Front Rocker Arm Oil Control Valve Removal and Installation

Removal/Installation

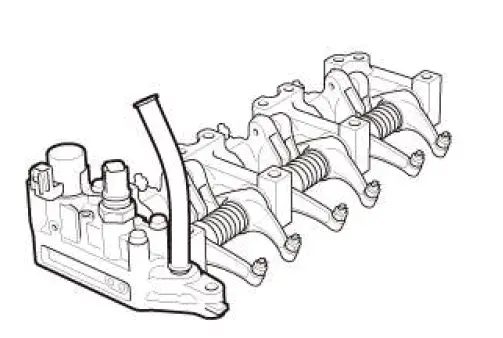

1. Front Rocker Arm Assembly - Remove

2. Front Rocker Arm Oil Control Valve - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Front Seat Armrest Removal and Installation

Removal/Installation

Except Adjustable Type

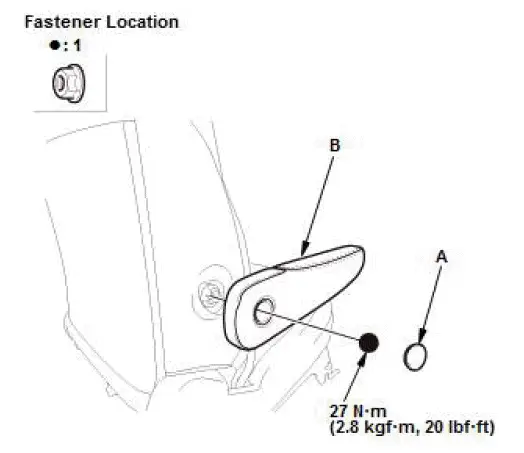

1. Front Seat Armrest - Remove

1. Remove the cap (A).
2. Remove the front seat armrest (B).

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Adjustable Type

1. Front Seat Armrest - Remove

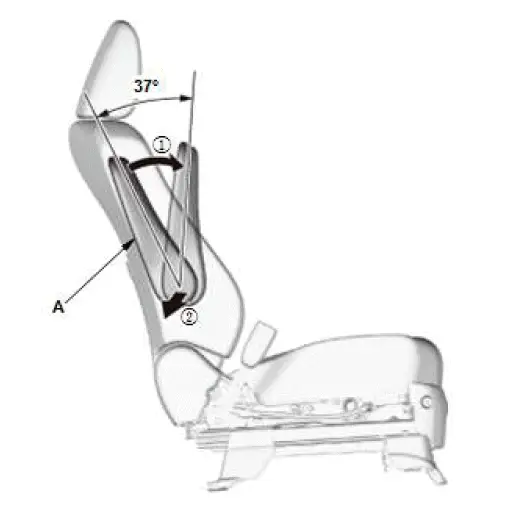

1. Move front seat armrest (A) to 37 degrees from stowed position.
2. Pull out the front seat armrest, and remove it.

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
