Honda Pilot: Front Seat Belt Buckle Removal and Installation

Removal/Installation

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Seat - Remove

2. Driver's Seat Snap Ring (For Some Models) - Release

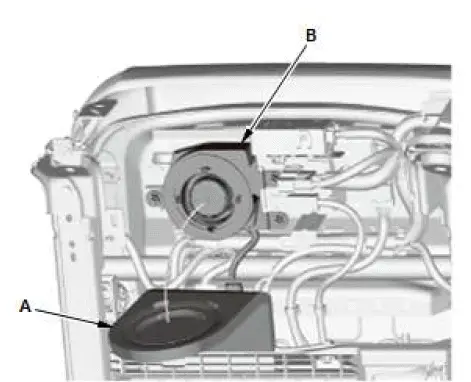

1. Release the snap ring (A) from the seat cushion blower (B).

3. Front Seat Belt Buckle - Remove

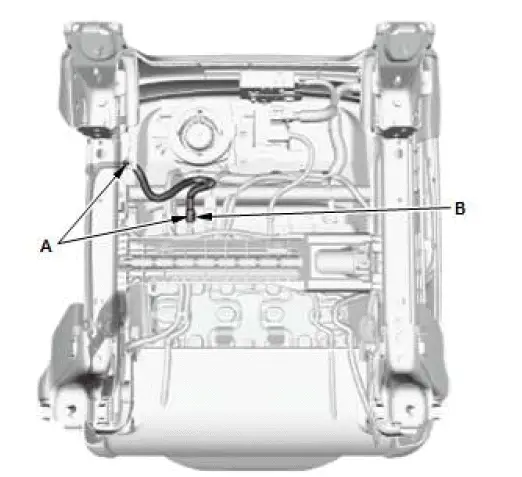

1. Remove the harness clips (A).
2. Disconnect the connector (B).

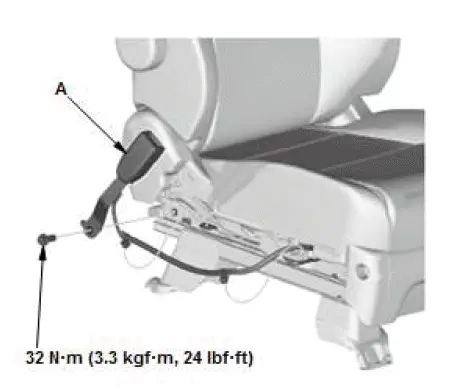

3. Remove the seat belt buckle (A).

4. All Removed Parts - Install

1. Install the parts reverse order of removal.

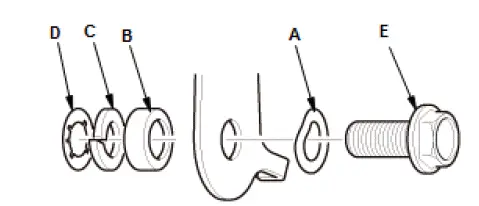

   NOTE: Assemble the wave washer (A), the collar (B), the spring washer (C), and the toothed lock washer (D) on the seat belt buckle bolt (E) as shown.
