Honda Pilot: Front Seat Recline Cover Removal and Installation

Removal/Installation

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

Power Seat

1. Front Seat - Remove

2. Front Seat Recline Cover - Remove

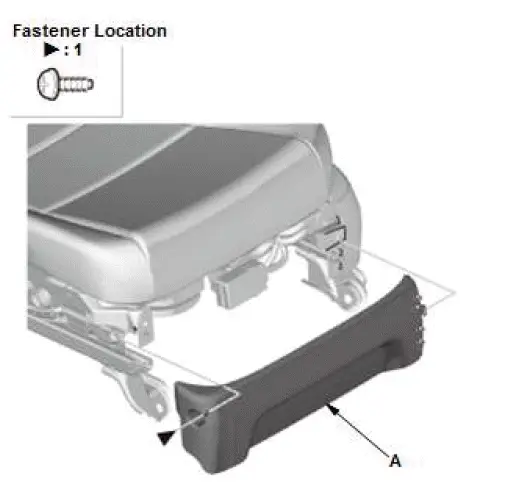

1. Remove the screw, and then remove the front cushion cover (A).

Driver's seat

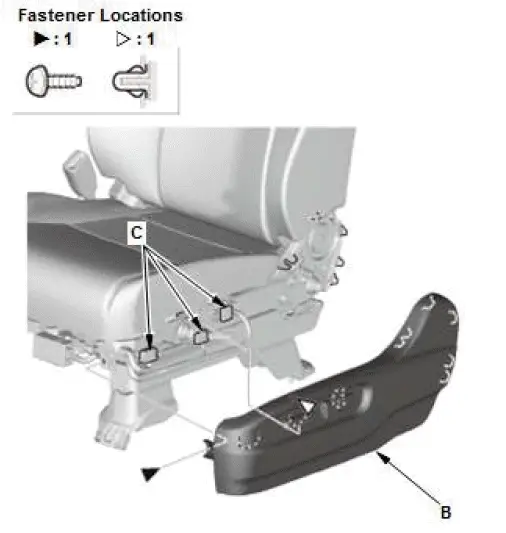

Passenger's seat

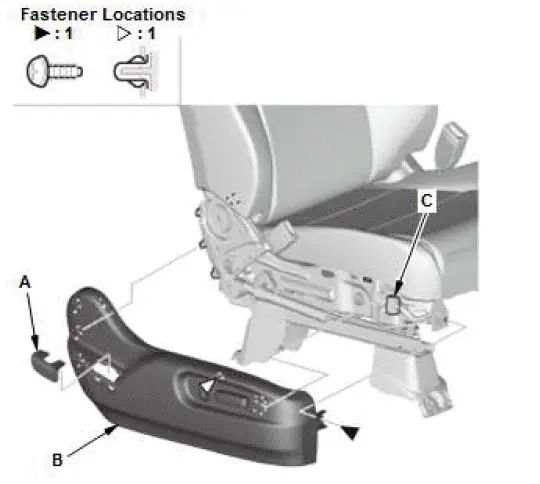

2. Remove the front seat recline cover cap (A). (passenger's side)
3. Pull out the front seat recline cover (B).
4. Disconnect the connectors (C).

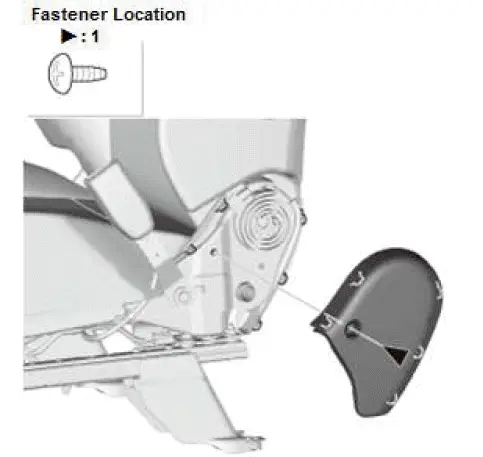

3. Reclining Inner Cover - Remove

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Manual Seat

1. Front Seat - Remove

2. Front Seat Height Adjuster Handle - Remove

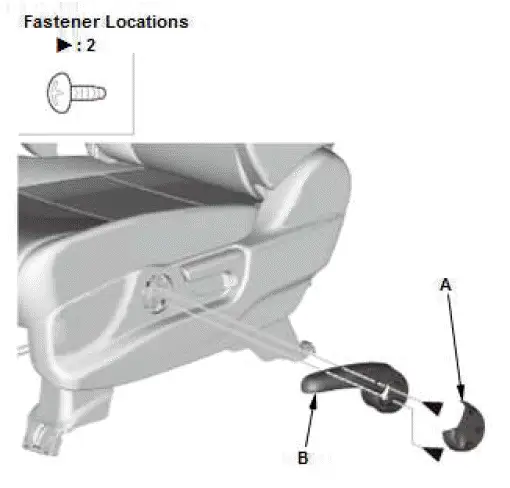

1. Remove the cap (A).
2. Remove the screws, and then remove the front seat height adjuster handle (B).

3. Front Seat Recline Outer Cover - Remove

Driver's seat

Passenger's seat

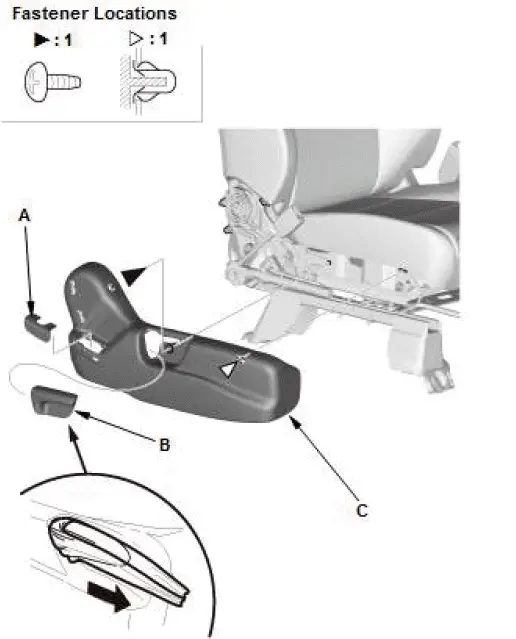

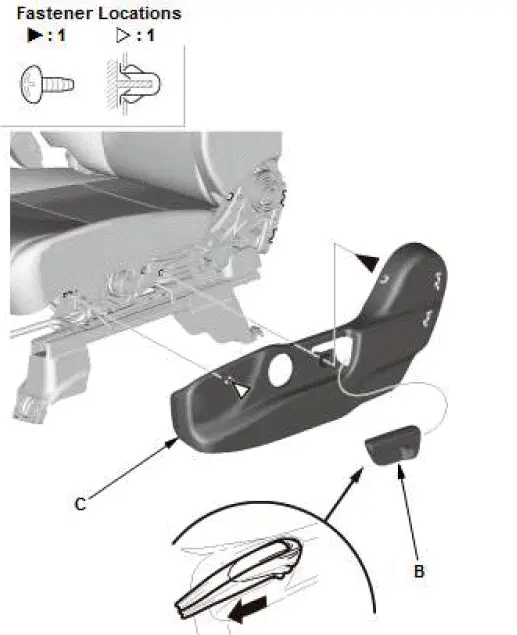

1. Remove the front seat recline cover cap (A). (passenger's side)
2. Remove the front seat recline knob (B).
3. Remove the recline outer cover (C).

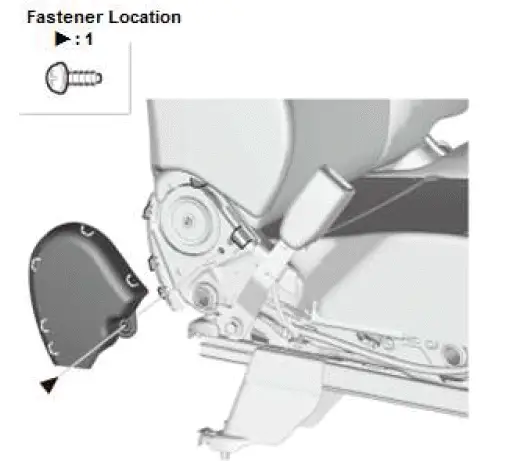

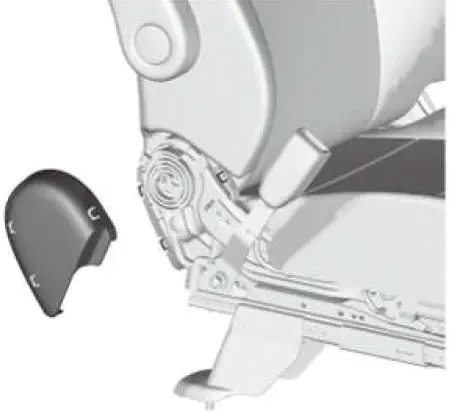

4. Reclining Inner Cover - Remove

Driver's seat

Passenger's seat

5. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
