Honda Pilot: Front Seat Lumbar Support Removal and Installation

Removal/Installation

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

Power Lumbar Support

1. Front Seat Armrest - Remove

2. Front Seat - Remove

3. Front Seat-Back Cover/Pad - Remove

4. Front Seat Lumbar Support - Remove

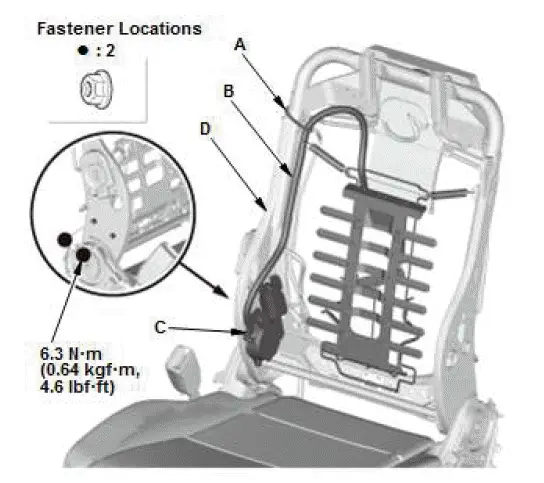

1. Remove the wire tie (A) fastening the lumbar support cable (B).
2. Remove the nuts, and separate the lumbar support motor (C) from the seat frame (D).

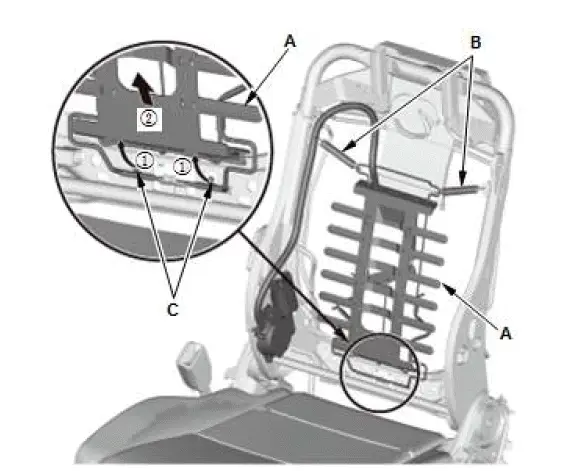

3. Remove the lumbar support (A) from both upper springs (B).
4. Lift up the hooks of the seat frame (C), and then remove the lumbar support.

5. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Static Lumbar Support

1. Front Seat Armrest - Remove

2. Front Seat - Remove

3. Front Seat-Back Cover/Pad - Remove

4. Front Seat Lumbar Support - Remove

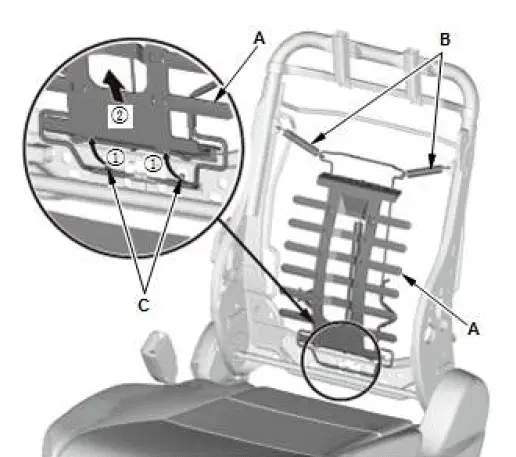

1. Remove the lumbar support (A) from both upper springs (B).
2. Lift up the hooks of the seat frame (C), and then remove the lumbar support.

5. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
