Honda Pilot: Front Seat Slide Lever Removal and Installation

Removal/Installation

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Seat - Remove

2. Front Seat Slide Lever - Remove

1. Lift up the front seat.

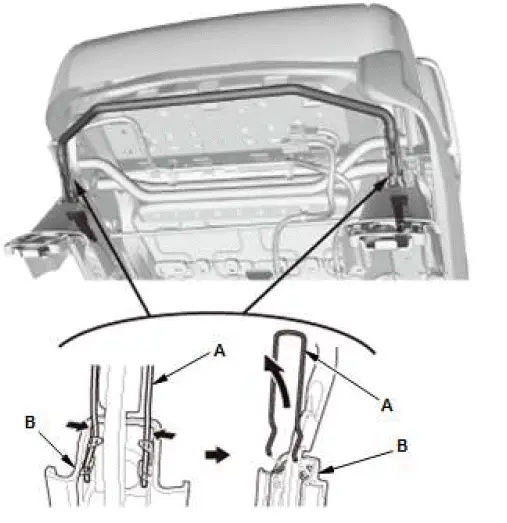

2. Remove both seat slide lever springs (A) from the front seat rail (B).

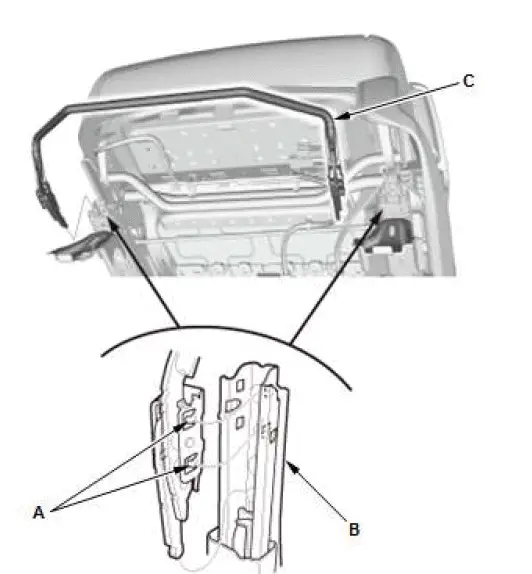

3. Release both sides of tabs (A) from the front seat rail (B), and then remove the seat slide lever (C).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
