Honda Pilot: Front Seat-Back Blower Removal and Installation

Removal/Installation

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Seat Back Cover - Remove

2. Front Seat Back Blower Cover - Remove

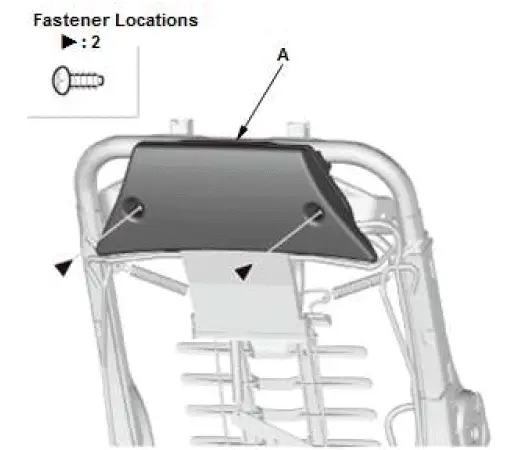

1. Remove the front seat back blower cover (A).

3. Front Seat-Back Blower - Remove

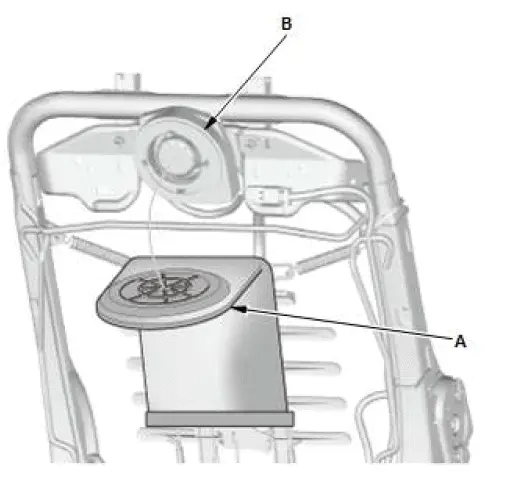

1. Release the snap ring (A) from the seat-back blower (B).

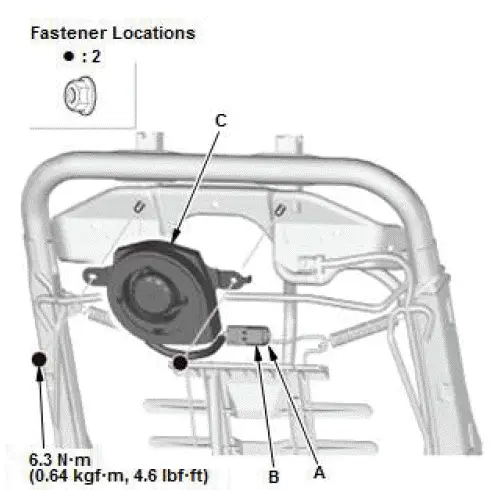

2. Disconnect the connector (A), and then remove the harness clip (B).
3. Remove the seat-back blower (C).

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
