Honda Pilot: Front Suspension Stroke Sensor Removal and Installation

Removal/Installation

1. Vehicle - Lift

2. Front Suspension Stroke Sensor - Remove

1. Disconnect the connector.
2. Remove the front suspension stroke sensor (A).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

4. Headlight Initial Position - Learn

NOTE: If the original front suspension stroke sensor is installed, confirm that all systems work properly.

Front Turn Signal Light Removal and Installation

Removal/Installation

1. Front Bumper - Remove

2. Front Turn Signal/Parking Light - Remove

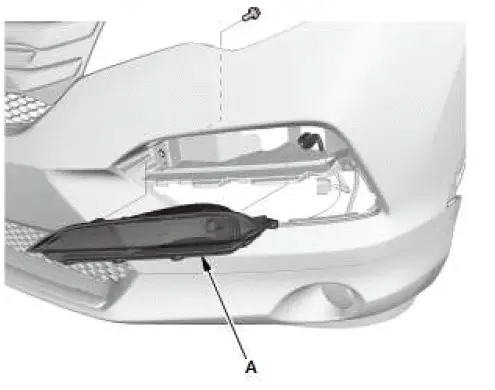

1. Remove the front bumper side trim (A).
2. Disconnect the connector.

Front Turn Signal Light: 24 W

Front Parking/Turn Signal Light: 28W/8W

3. Disconnect the connector.
4. Remove the turn signal light (A).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
