Honda Pilot: Front Stabilizer Link Removal and Installation

Removal

1. Vehicle - Lift

2. Front Wheel - Remove

3. Stabilizer Link - Remove

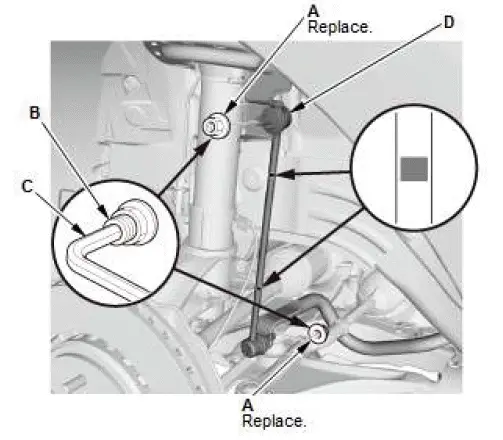

1. Remove the flange nuts (A) while holding the respective joint pin (B) with a hex wrench (C).
2. Remove the stabilizer link (D).

Installation

1. Stabilizer Link - Install

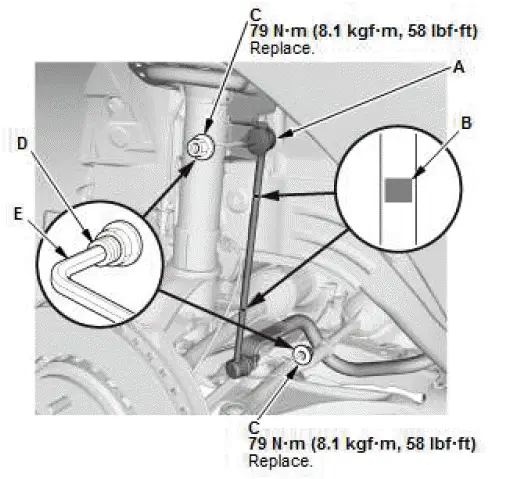

1. Install the stabilizer link (A).

   NOTE: The stabilizer link has a paint marks (B). The left stabilizer link is marked with yellow paint, and the right stabilizer link is marked with blue paint.

2. Install the new flange nuts (C), and tighten them to the specified torque while holding the respective joint pin (D) with a hex wrench (E).

2. Front Wheel - Install
