Honda Pilot: Grab Handle Removal and Installation

Removal

1. Grab Handle - Remove

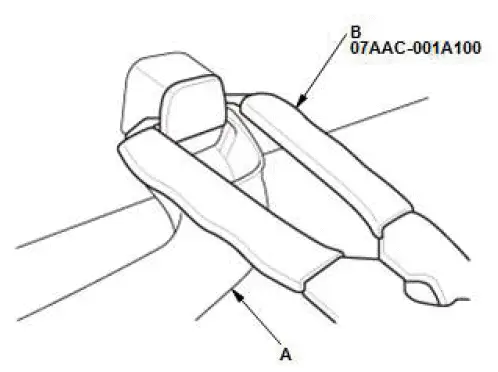

1. Lower the grab handle (A).
2. Insert the tips of the push pin/grab rail cap pliers (B) into the notch.

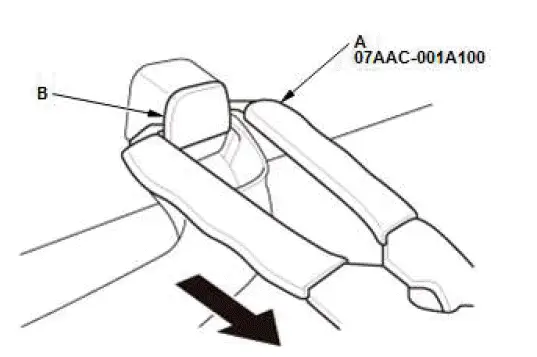

3. Gently squeeze the handles of the push pin/grab rail cap pliers (A), and pull the cap (B) straight out.

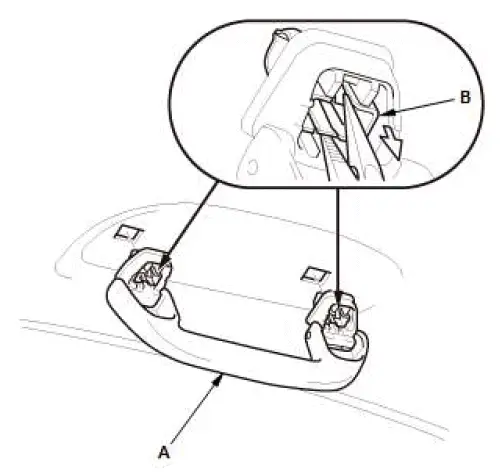

4. Lower the grab handle (A).
5. Squeeze the clips (B) with pliers, and then remove the grab handle.

Installation

1. Grab Handle - Check

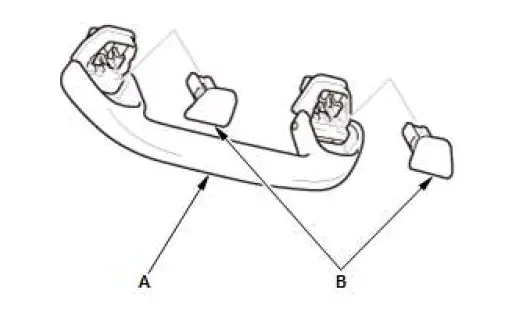

1. If the side curtain airbag has not deployed, inspect the grab handle (A) for damage. A damaged grab handle may cause the side curtain airbag to deploy improperly, possibly causing injury. Replace the grab handle if it has any of the following of damage:
   • Any cracks or breakage in the grab handle
   • Any cracks or stress-whitening in the caps (B)

2. Grab Handle - Install

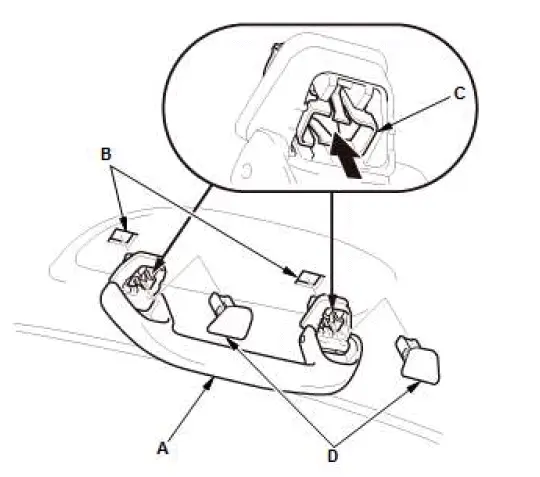

1. Position the grab handle (A) on the grab handle bracket (B).
2. Push on the grab handle until the clips (C) snap into place securely.
3. Install the caps (D) fully into the clips.

Special Tool Required

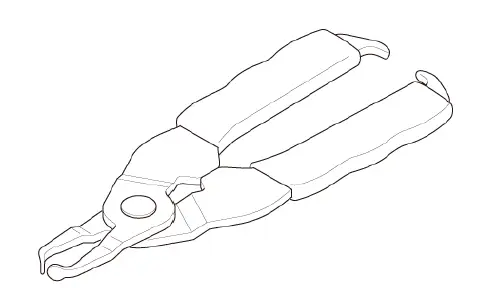

• Push Pin/Grab Rail Cap Pliers 07AAC-001A100

Hazard Warning Switch Removal and Installation

Removal/Installation

1. Dashboard Center Panel - Remove

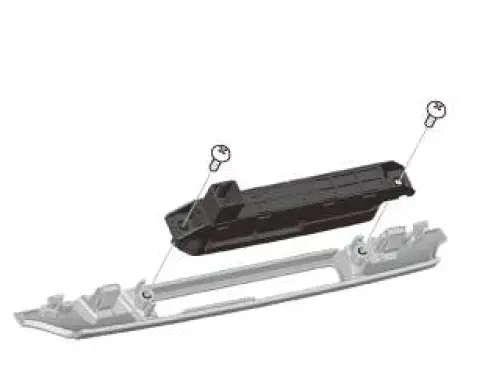

2. Hazard Warning Switch - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

HD Traffic Antenna Amplifier Removal and Installation

Removal/Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Left Side C Pillar Trim - Remove

2. HD Traffic Antenna Amplifier - Remove

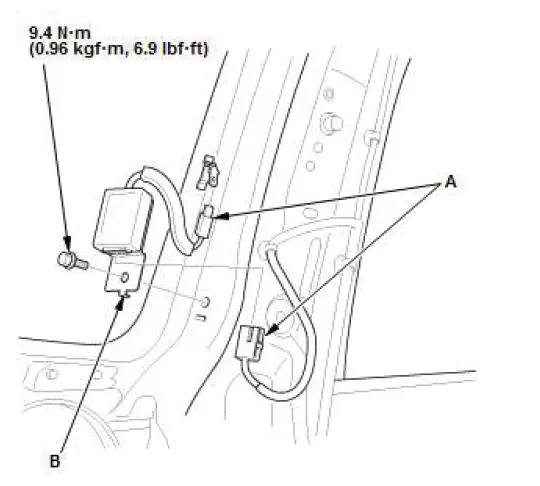

1. Disconnect the connectors (A).
2. Remove the HD traffic antenna amplifier (B).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
