Honda Pilot: Heated Steering Wheel Switch Removal and Installation

Removal/Installation

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Steering Wheel Trim- Remove

1. Adjust the steering column to the full telescopic out position.

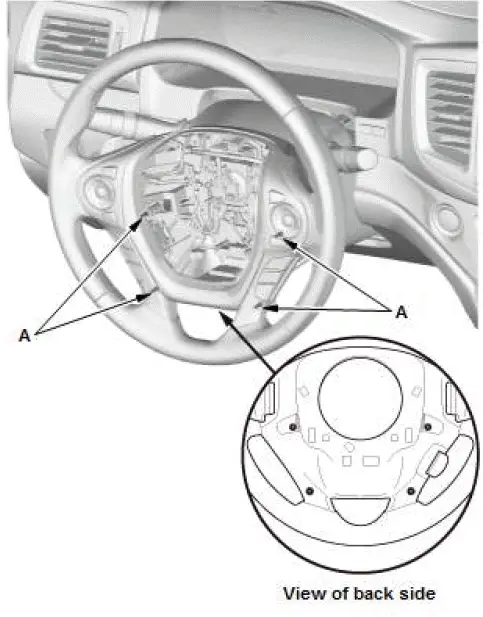

2. Loosen the screws (A).

NOTE:

• Turn the steering wheel to the proper position to loosen the screws.
• The screws remains in the rear cover.

3. Remove the driver's airbag.

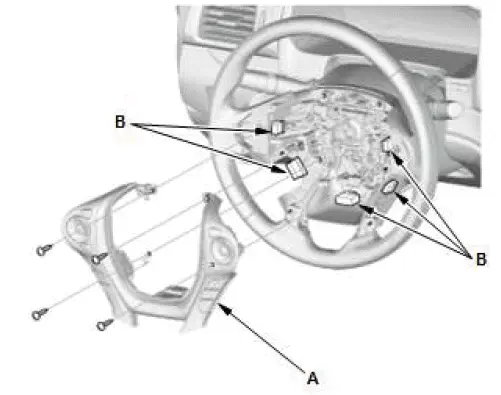

4. Pull out the steering wheel trim (A), then disconnect the connectors (B).
5. Remove the steering wheel trim.

2. Heated Steering Wheel Switch - Remove

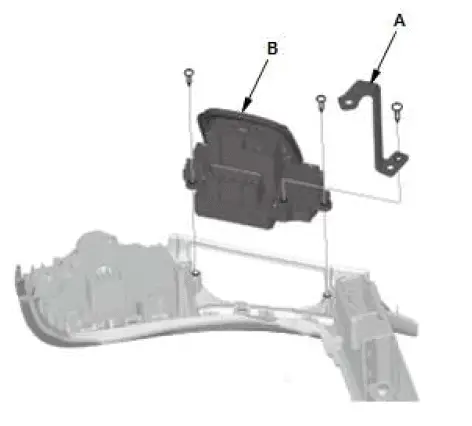

1. Remove the set plate (A) and the heated steering wheel switch (B).

3. All Remove Parts - Install

1. Install the parts in the reverse order of removal.

Heated Windshield Wiper Area Switch Removal and Installation

Removal and Installation

1. Driver's Dashboard Lower Cover - Remove

2. Heated Windshield Wiper Area Switch - Remove

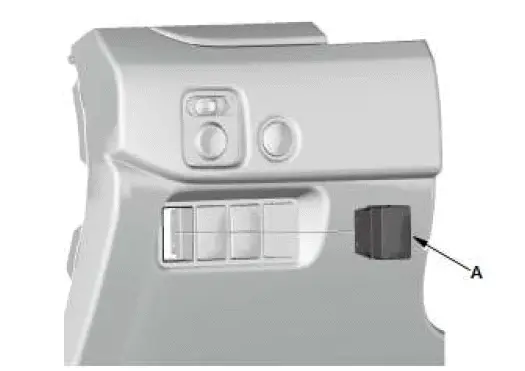

NOTE: The mounting position of the heated windshield wiper area switch (A) is different depending on the model.

3. All Parts Removed - Install

1. Install the parts in the reverse order of removal.
