Honda Pilot: HVAC Control Unit Connector for Inputs and Outputs
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Connector input and output Info / HVAC Control Unit Connector for Inputs and Outputs
Connector Index

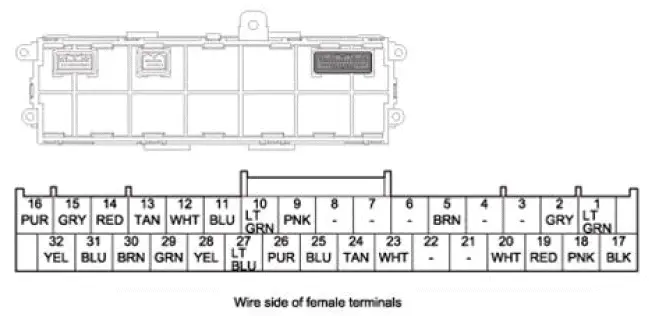

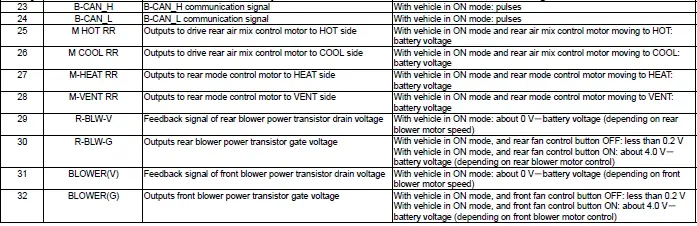

HVAC Control Unit Connector A (32P)

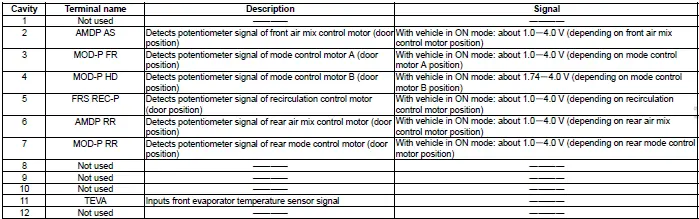

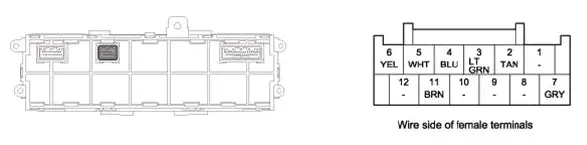

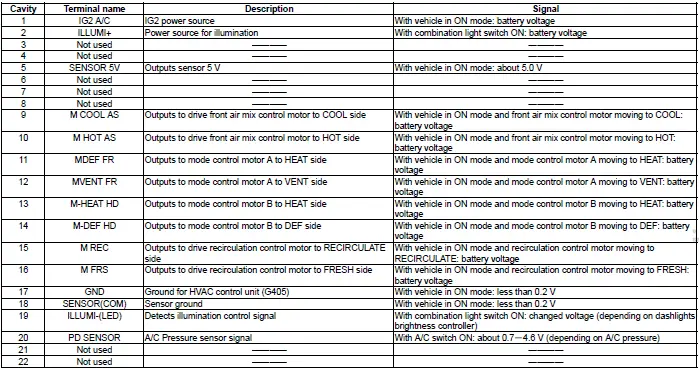

HVAC Control Unit Connector C (12P)
HVAC Control Unit Connector A (32P)
HVAC Control Unit Connector C (12P)

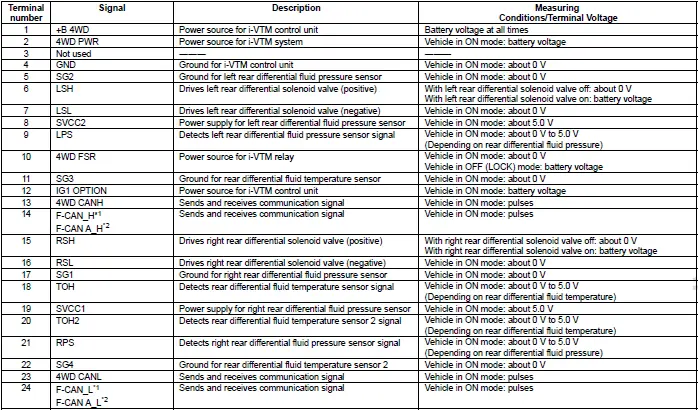

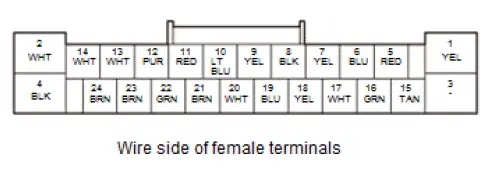

i-VTM Control Unit Connector for Inputs and Outputs
i-VTM Control Unit 24P Connector
*1: 6-Speed A/T
*2: 9-Speed A/T
