Honda Pilot: Keyless Access/TPMS Control Unit Connector for Inputs and Outputs
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Connector input and output Info / Keyless Access/TPMS Control Unit Connector for Inputs and
Outputs
Connector Index

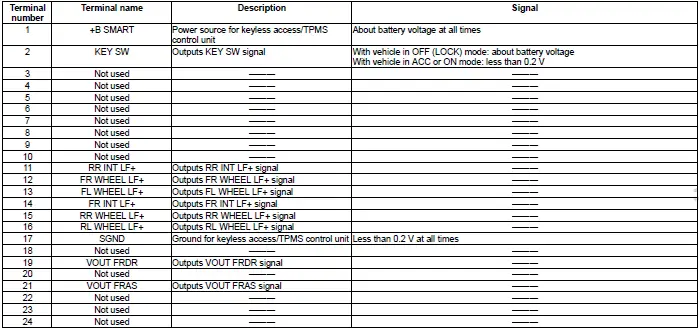

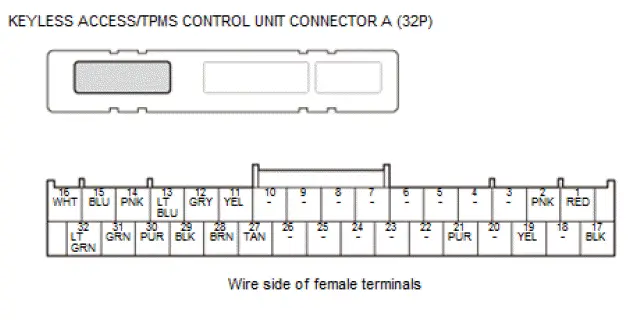

KEYLESS ACCESS/TPMS CONTROL UNIT CONNECTOR A (32P)

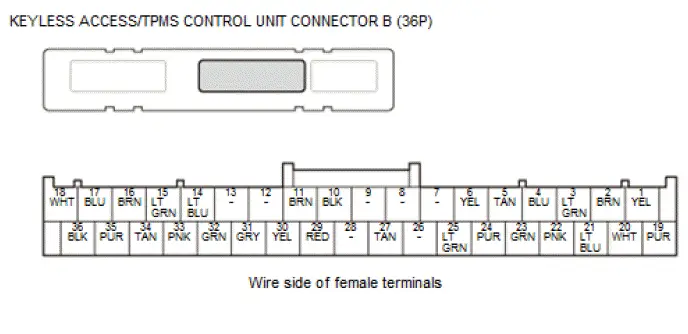

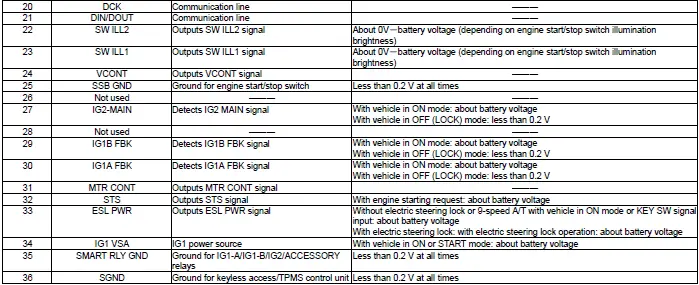

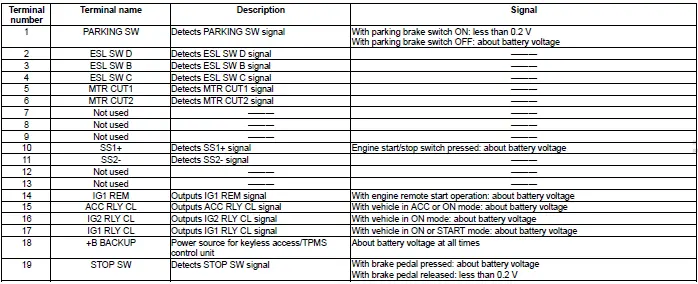

KEYLESS ACCESS/TPMS CONTROL UNIT CONNECTOR B (36P)

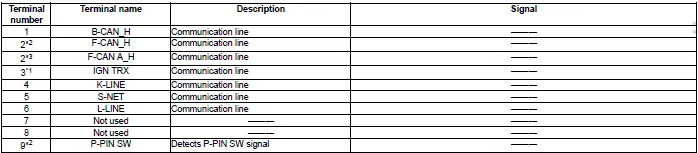

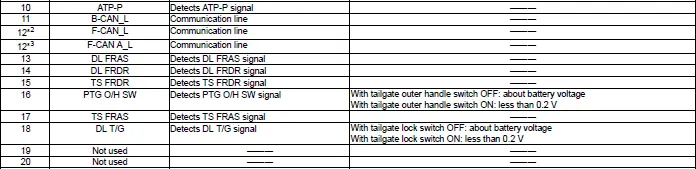

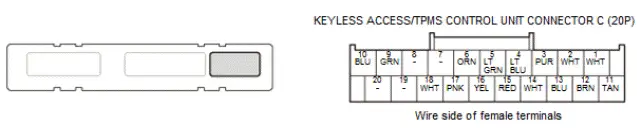

KEYLESS ACCESS/TPMS CONTROL UNIT CONNECTOR C (20P)
*1: 9-spped A/T or with electric steering lock
*2: 6-speed A/T
*3: 9-speed A/T
