Honda Pilot: Indicators

In the Honda Pilot 2023, various indicators will illuminate or blink depending on the condition of the vehicle. Simultaneously, messages may display on the driver information interface. It is important to take the appropriate action as outlined in the message, such as contacting a dealer, to ensure the vehicle's optimal performance and safety.

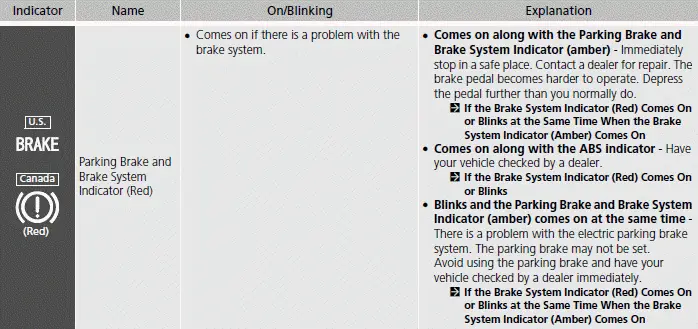

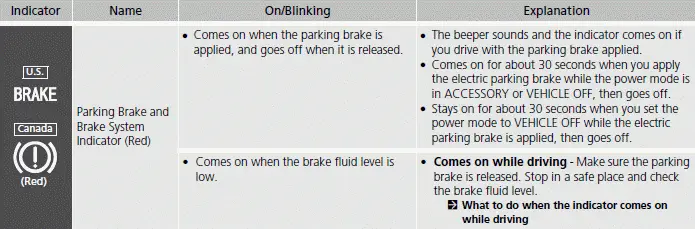

Parking Brake and Brake System Indicator (Red)

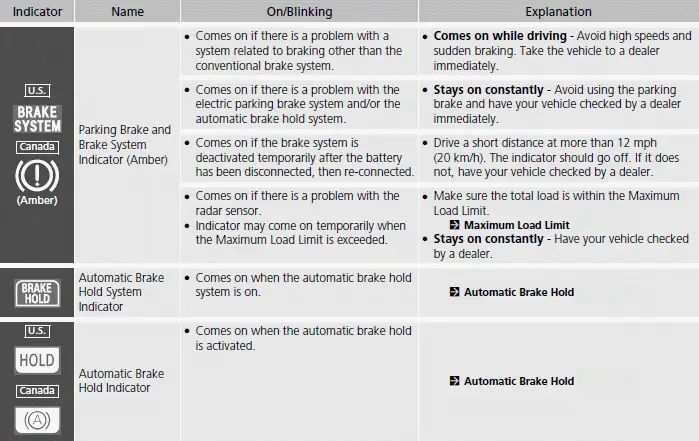

Parking Brake and Brake System Indicator (Amber)

Automatic Brake Hold System Indicator

Automatic Brake Hold Indicator

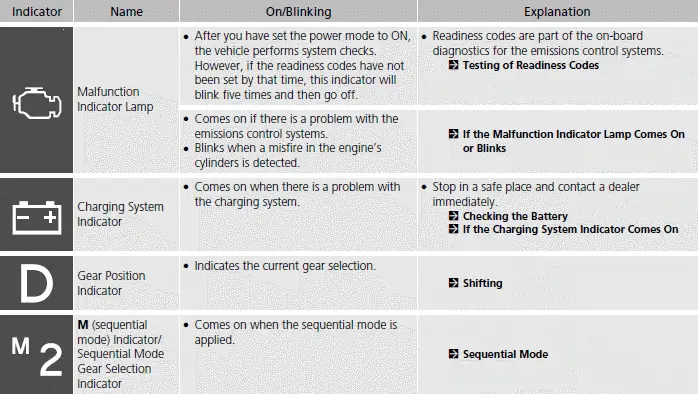

Malfunction Indicator Lamp

Charging System Indicator

Gear Position Indicator

M (sequential mode) Indicator/Gear Selection Indicator

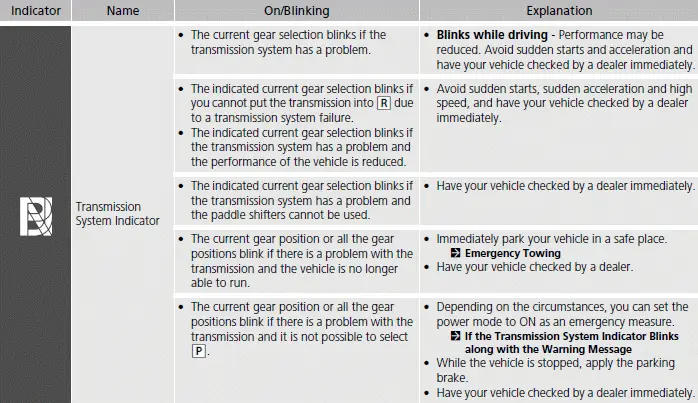

Transmission System Indicator

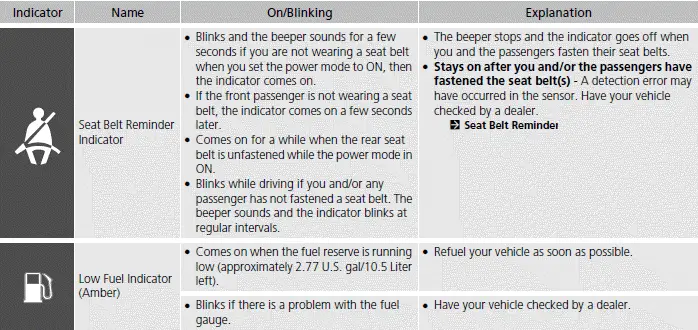

Seat Belt Reminder Indicator

Low Fuel Indicator (Amber)

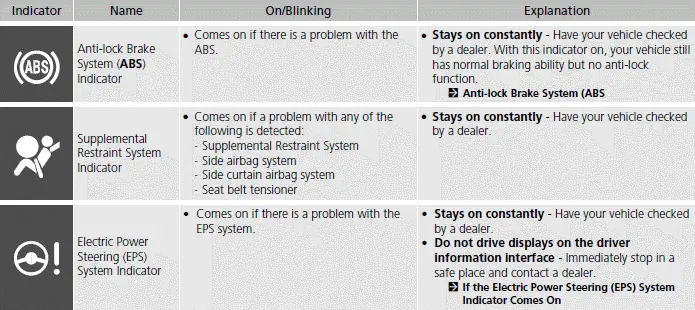

Anti-lock Brake System (ABS) Indicator

Supplemental Restraint System Indicator

Electric Power Steering (EPS) System Indicator

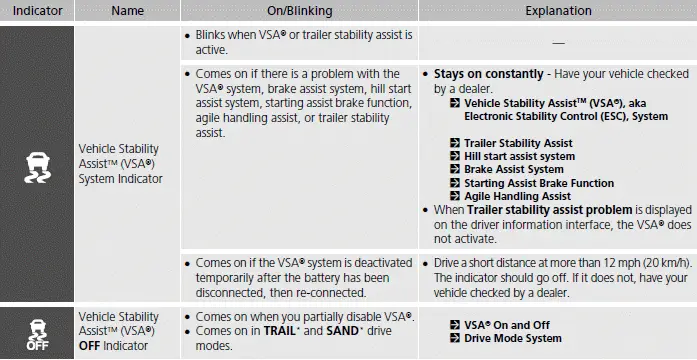

Vehicle Stability AssistTM (VSA) System Indicator

Vehicle Stability AssistTM (VSA) OFF Indicator

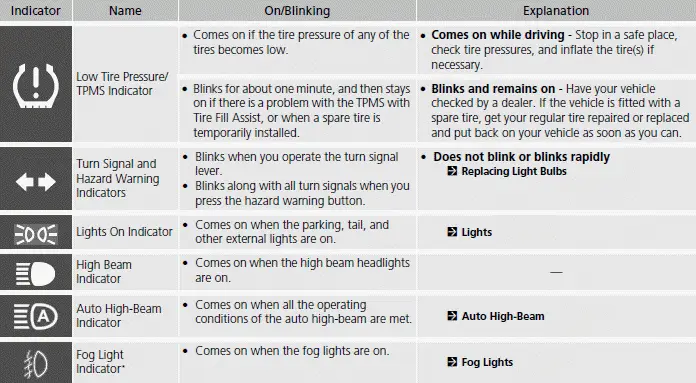

Low Tire Pressure/ TPMS Indicator

Turn Signal and Hazard Warning Indicators

  Lights On Indicator

High Beam Indicator

Auto High-Beam Indicator

Fog Light Indicator *

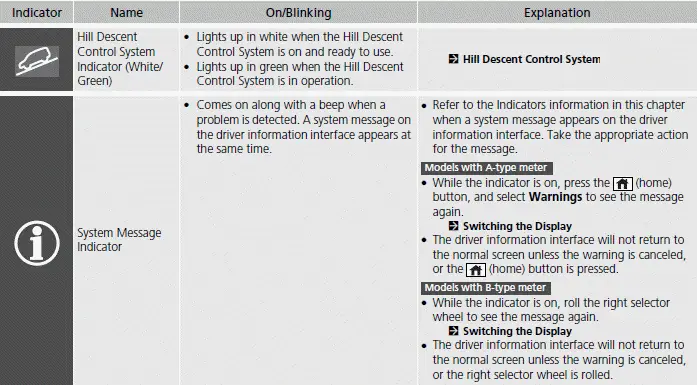

Hill Descent Control System Indicator (White/Green)

   System Message Indicator

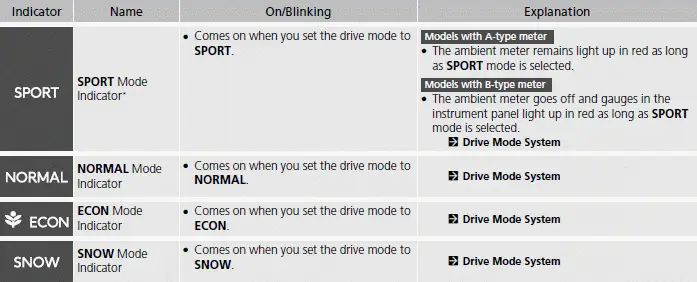

  SPORT Mode Indicator *

NORMAL Mode Indicator

ECON Mode Indicator

  SNOW Mode Indicator

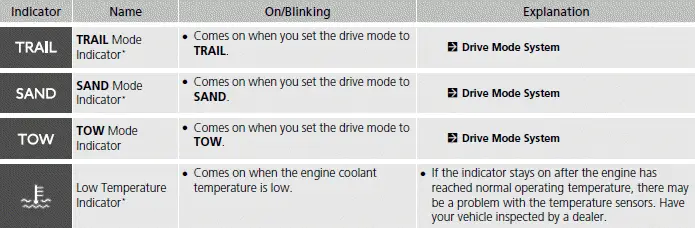

TRAIL Mode Indicator

  SAND Mode Indicator

  TOW Mode Indicator

Low Temperature Indicator

Cruise Mode Indicator (White/Green)

  Adaptive Cruise Control (ACC) with Low Speed Follow Interval Indicator

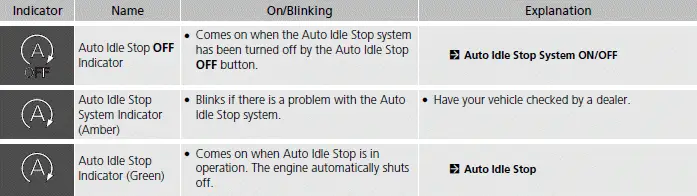

Auto Idle Stop Off Indicator

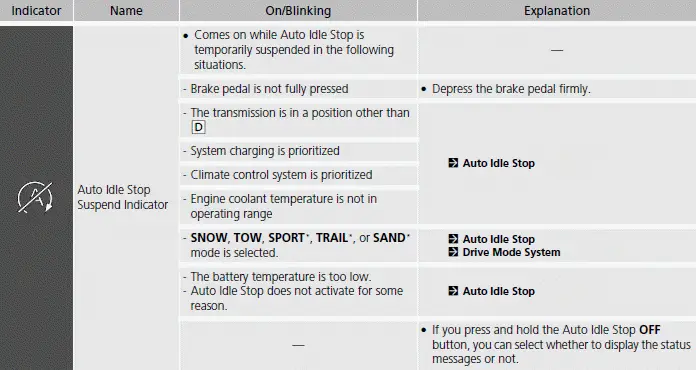

  Auto Idle Stop Suspend Indicator

Auto Idle Stop System Indicator (Amber)

Auto Idle Stop Indicator (Green)

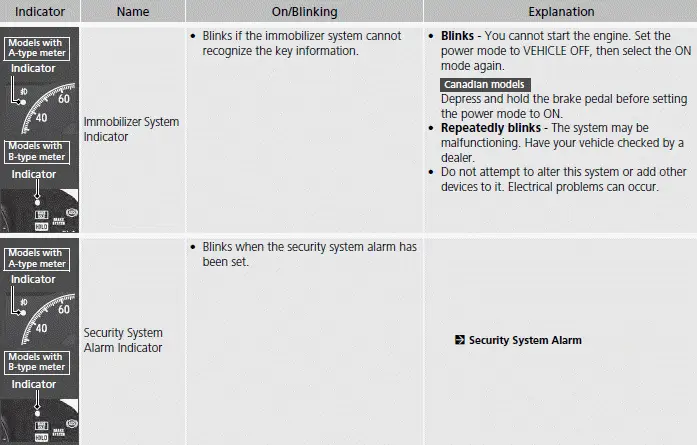

Immobilizer System Indicator

Security System Alarm Indicator

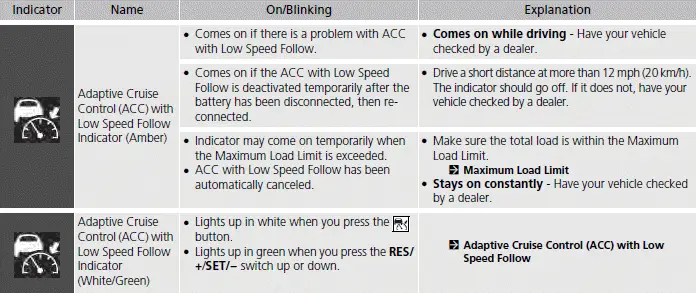

Adaptive Cruise Control (ACC) with Low Speed Follow Indicator (Amber)

Adaptive Cruise Control (ACC) with Low Speed Follow Indicator (White/Green)

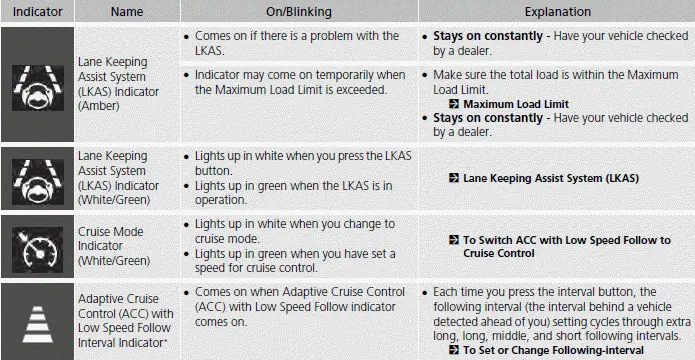

Lane Keeping Assist System (LKAS) Indicator (Amber)

Lane Keeping Assist System (LKAS) Indicator (White/Green)

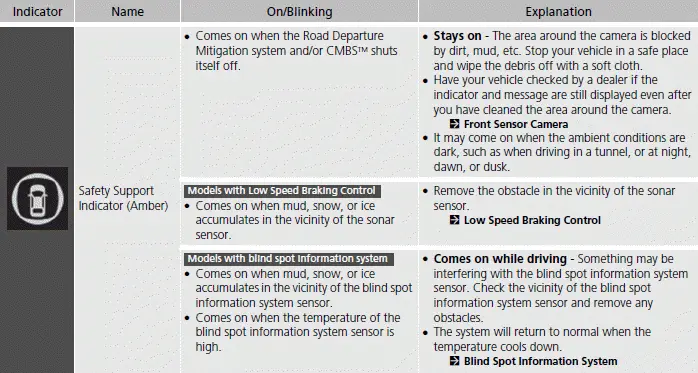

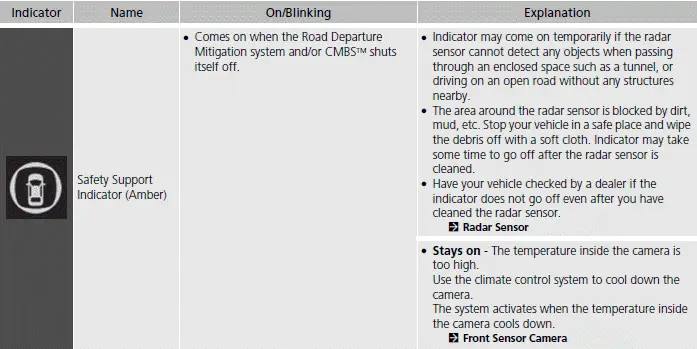

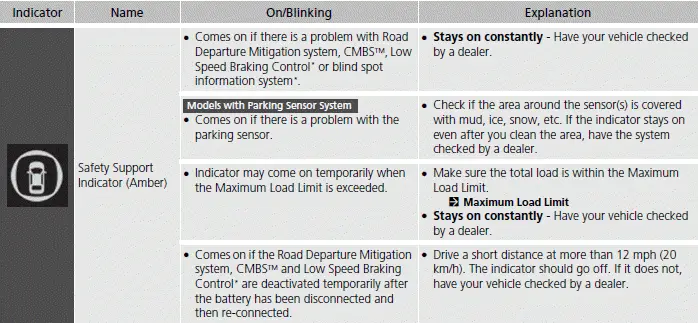

Safety Support Indicator (Amber)

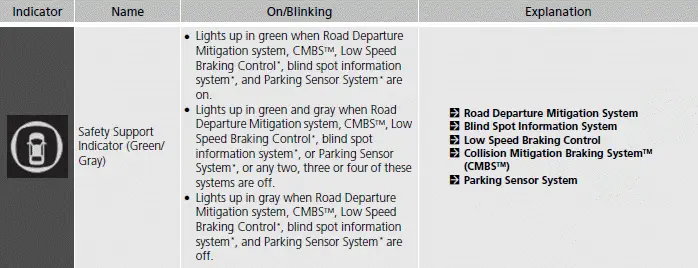

  Safety Support Indicator (Green/Gray)

*1: When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the engine has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the owner's manual.

* Not available on all models
