Honda Pilot: Inner Taillight Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Inner Taillight Removal and Installation
Removal/Installation
1. Tailgate Lower Trim Panel - Remove
2. Inner Taillight - Remove

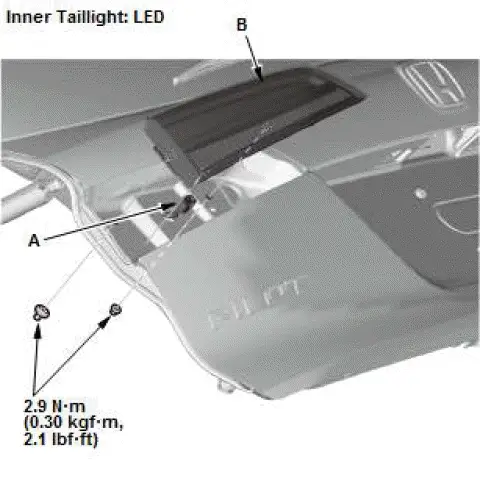

- Disconnect the connectors (A).

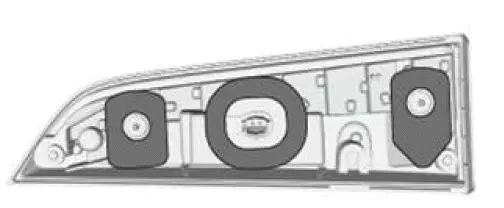

- Remove the inner taillight (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE: Inspect the gasket and replace it if it is distorted or stays compressed.
