Honda Pilot: Intake Air Resonator Removal and Installation

Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Intake Air Resonator Removal and Installation

Removal/Installation

1. Air Cleaner - Remove

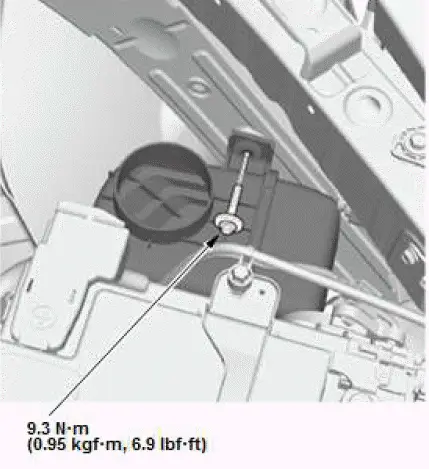

2. Intake Air Resonator Mounting Bolt - Remove

Honda Pilot. Remove, Install, Replace, Check info

3. Left Front Inner Fender - Remove

NOTE: Remove the appropriate portion of the left front inner fender.

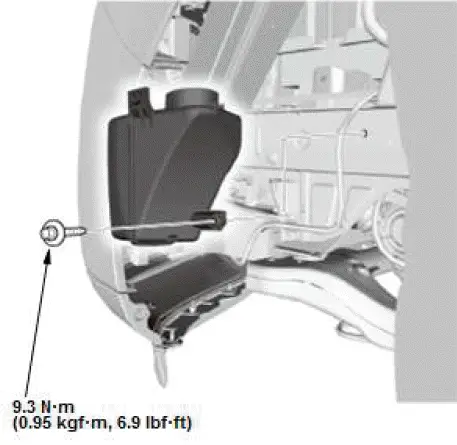

4. Intake Air Resonator - Remove

Honda Pilot. Remove, Install, Replace, Check info

5. All Removed Parts - Install
