Honda Pilot: Interior Lights Component Location Index

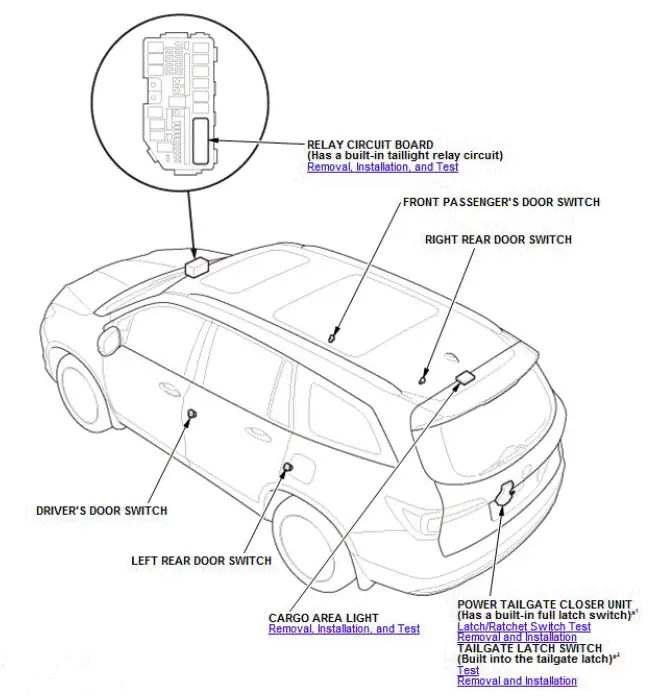

• RELAY CIRCUIT BOARD
• FRONT PASSENGER'S DOOR SWITCH
• RIGHT REAR DOOR SWITCH
• POWER TAILGATE CLOSER UNIT (Has a built-in full latch switch )*1
  TAILGATE LATCH SWITCH (Built in to the tailgate latch)*2

*1 With power tailgate
*2 Without power tailgate

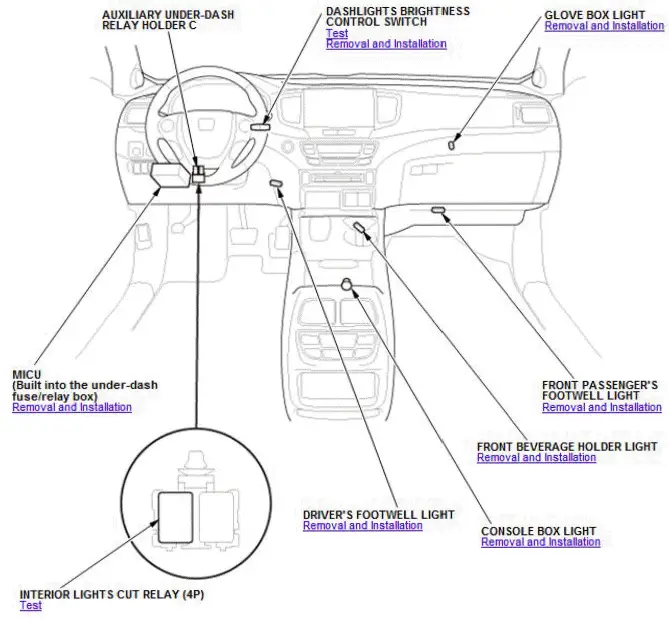

• AUXILIARY UNDER-DASH RELAY HOLDER C
• DASHLICHTS BRIGHTNESS CONTROL SWITCH
• GLOVE BOX LIGHT
• FRONT PASSENGER'S FOOTWELL LIGHT
• FRONT BEVERAGE HOLDER LIGHT
• CONSOLE BOX LIGHT
• DRIVER'S FOOTWELL LIGHT
• INTERIOR LIGHTS CUT RELAY (4P)
• MICU (Built in to the under-dash fuse/relay box)

With panoramic glass roof

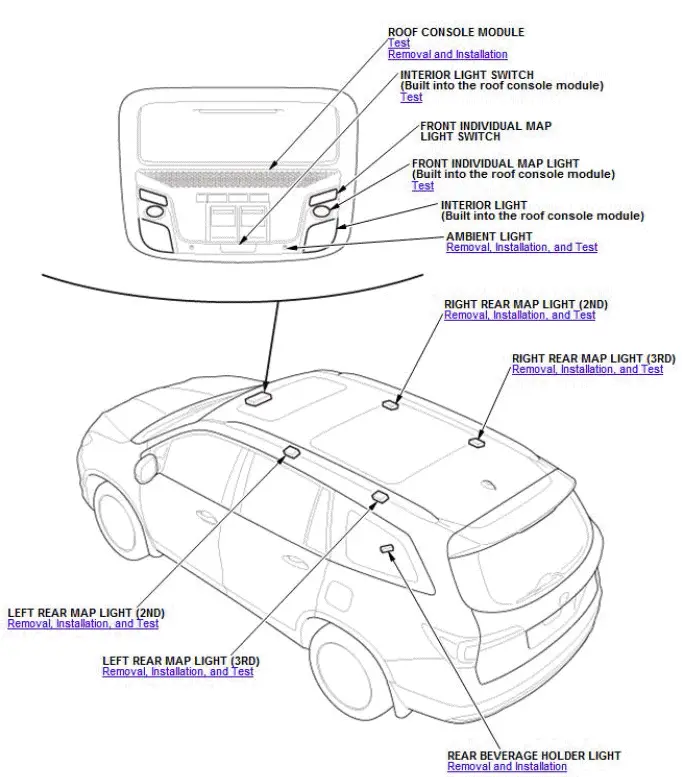

• ROOF CON SOLE MODULE
• INTERIOR LIGHT SWITCH (Built into the roof console module)
• FRONT INDIVIDUAL MAP LIGHT SWITCH
• FRONT IN DI VI DUAL MA PLIGHT (Built into the roof console module)
• INTERIOR LIGHT (Built in to the roof console module)
• AMBIENT LIGHT
• RIGHT REAR MAP LIGHT (2ND)
• RIGHT REAR MAP LIGHT (3RD)
• REAR BEVERAGE HOLDER LIGHT
• LEFT REAR MAP LIGHT (3RD)
• LEFT REAR MAP LIGHT (2ND)

Without panoramic glass roof

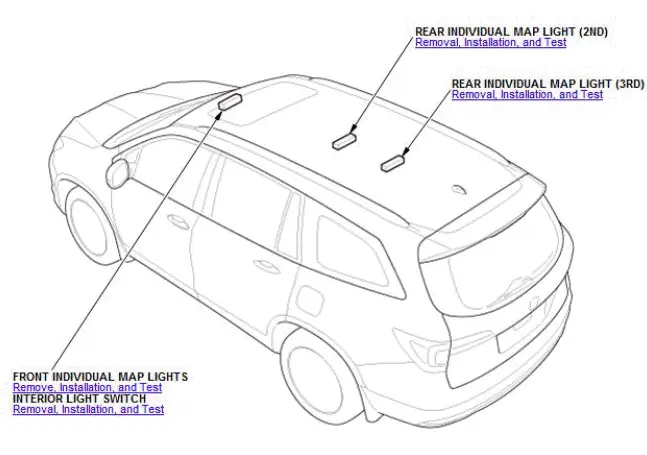

• REAR INDIVIDUAL MAP LIGHT (2ND)
• REAR INDIVIDUAL MAP LIGHT (3RD)
• FRONT INDIVIDUAL MAP LIGHTS
  INTERIOR LIGHT SWITCH

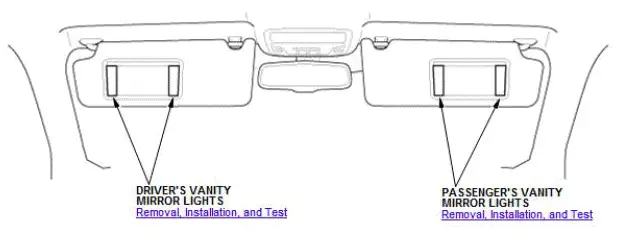

• DRIVER'S VANITY MIRROR LIGHTS
• PASSENGER'S VANITY MIRROR LIGHTS

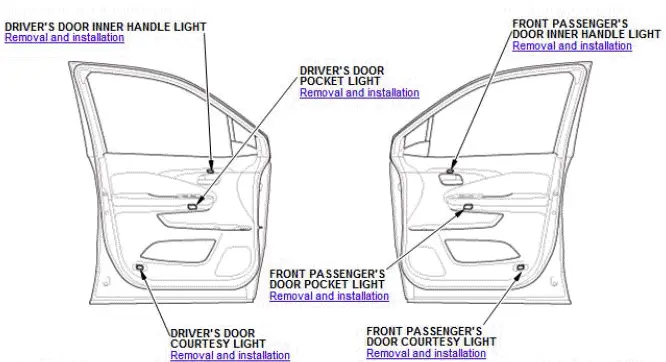

• DRIVER'S DOOR INNER HANDLE LIGHT
• DRIVER'S DOOR POCKET LIGHT
• DRIVER'S DOOR COURTESY LIGHT
• FRONT PASSENGER'S DOOR INNER HANDLE LIGHT
• FRONT PASSENGER'S DOOR POCKET LIGHT
• FRONT PASSENGER'S DOOR COURTESY LIGHT

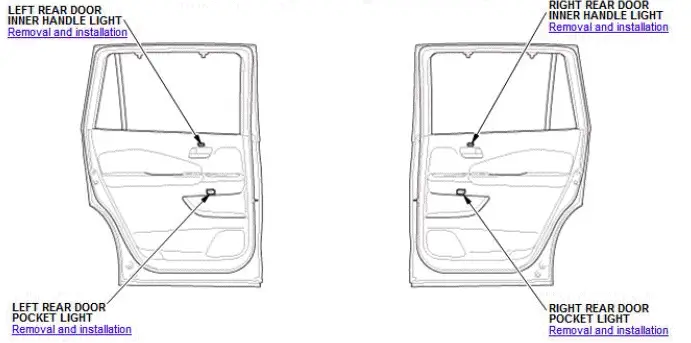

• LEFT REAR DOOR INNER HANDLE LIGHT
• LEFT REAR DOOR POCKET LIGHT
• RIGHT REAR DOOR INNER HANDLE LIGHT
• RIGHT REAR DOOR POCKET LIGHT

Interior Trim Component Location Index

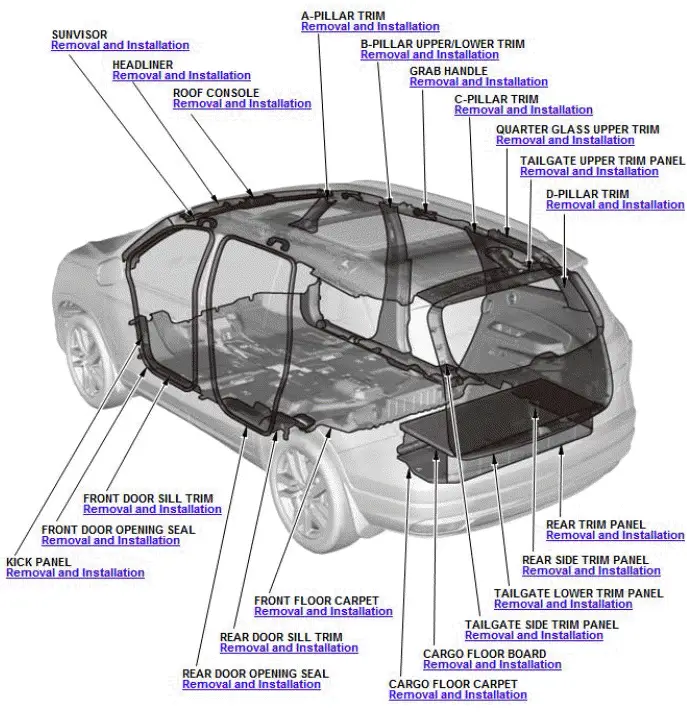

• SUNVISOR
• HEADLINER
• ROOF CONSOLE
• A-PILLAR TRIM
• B-PILLAR UPPER/LOWER TRIM
• GRAB HANDLE
• C-PILLAR TRIM
• QUARTER GLASS UPPER TRIM
• TAILGATE UPPER TRIM PANEL
• D-PILLAR TRIM
• REAR TRIM PANEL
• REAR SIDE TRIM PANEL
• TAILGATE LOWER TRIM PANEL
• TAILGATE SIDE TRIM PANEL
• CARGO FLOOR BOARD
• CARGO FLOOR CARPET
• FRONT FLOOR CARPET
• REAR DOOR SILL TRIM
• REAR DOOR OPENING SEAL
• FRONT DOOR SILL TRIM
• FRONT DOOR OPENING SEAL
• KICK PANEL

Ignition System Component Location IndexKeyless Access System Component Location Index
