Honda Pilot: Keyless Access System Component Location Index

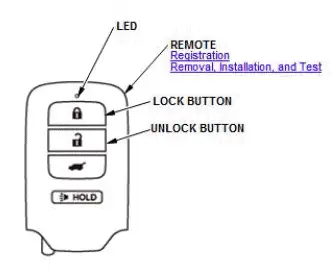

Without remote engine start

• LED
• REMOTE
• LOCK BUTTON
• UNLOCK BUTTON

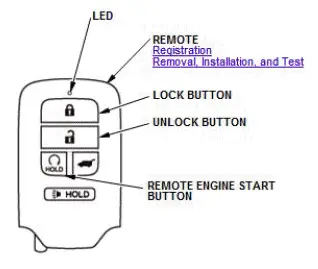

With remote engine start

• LED
• REMOTE
• LOCK BUTTON
• UNLOCK BUTTON
• REMOTE ENGINE START BUTTON

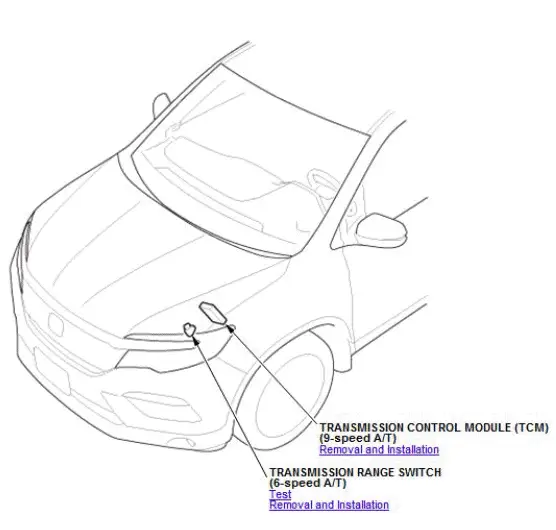

• TRANSMISSION CONTROL MODULE (TCM) (9-speed A/T)
• TRANSMISSION RANGE SWITCH (6-speed A/T)

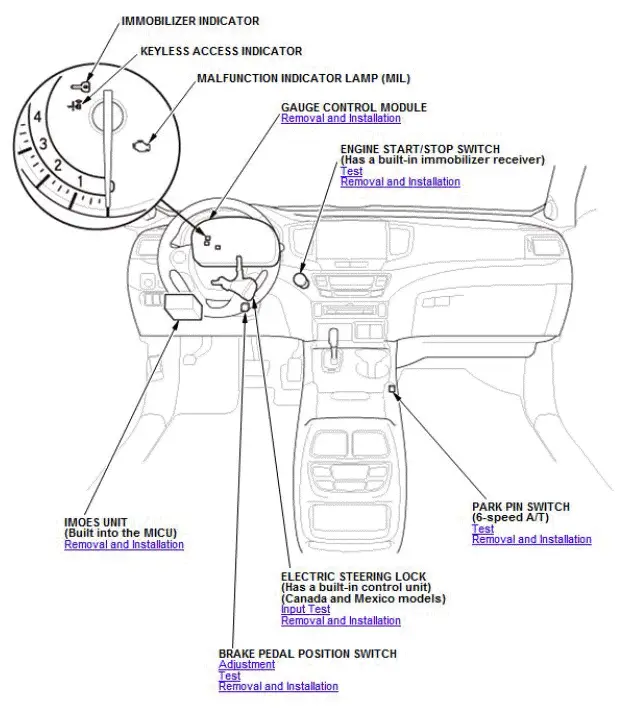

• IMMOBILIZER INDICATOR
• KEYLESS ACCESS INDICATOR
• MALFUNCTION INDICATOR LAMP (MIL)
• GAUGE CONTROL MODULE
• ENGINE START/STOP SWITCH
• PARK PIN SWITCH (6-speed A/T)
• ELECTRIC STEERING LOCK (Has a built-in control unit) Canada and Mexico models)
• BRAKE PEDAL POSITION SWITCH
• IMOES UNIT (Built into the MICU)

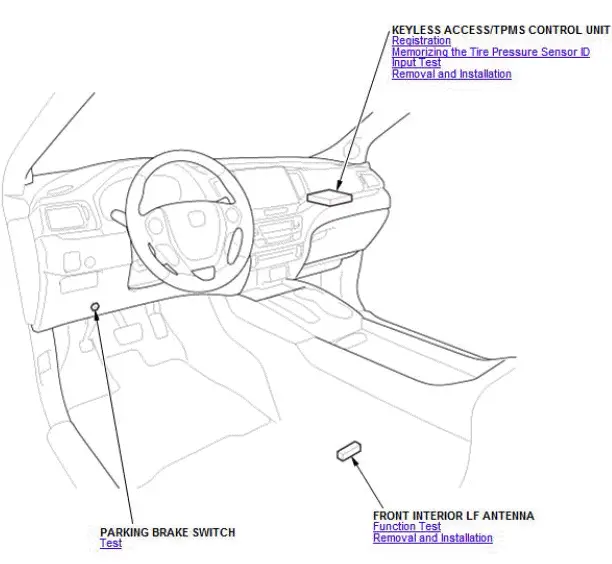

• KEYLESS ACCESS/TPMS CONTROL UNIT
• FRONT INTERIOR LF ANTENNA
• PARKING BRAKE SWITCH

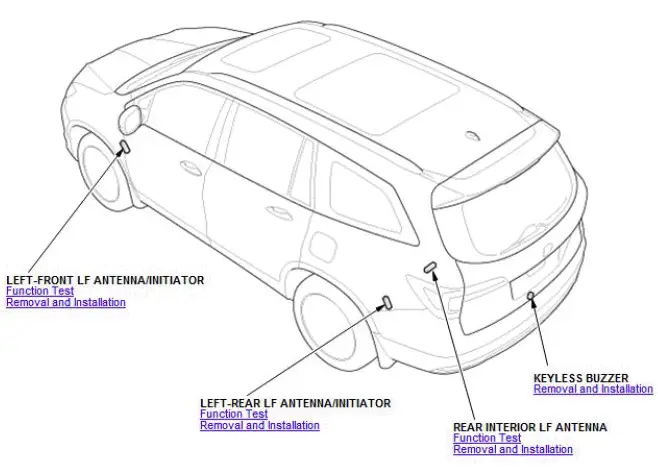

• LEFT-FRONT LF ANTENNA/INITIATOR
• LEFT-REAR LF ANTENNA/INITIATOR
• REAR INTERIOR LF ANTENNA
• KEYLESS BUZZER

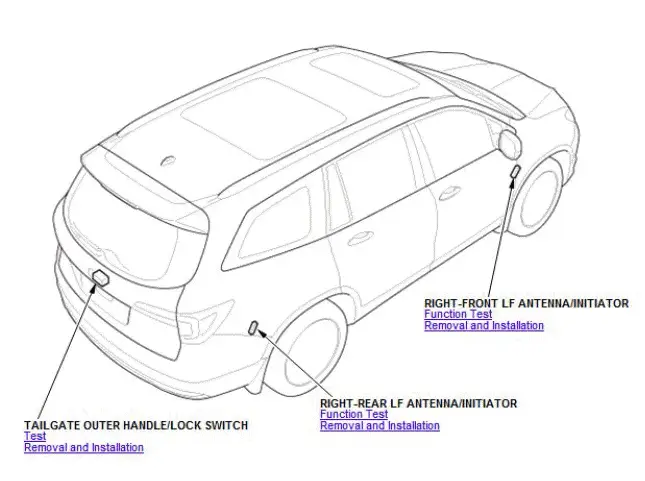

• TAILGATE OUTER HANDLE/LOCK SWITCH
• RIGHT-REAR LF ANTENNA/INITIATOR
• RIGHT-FRONT LF ANTENNA INITIATOR

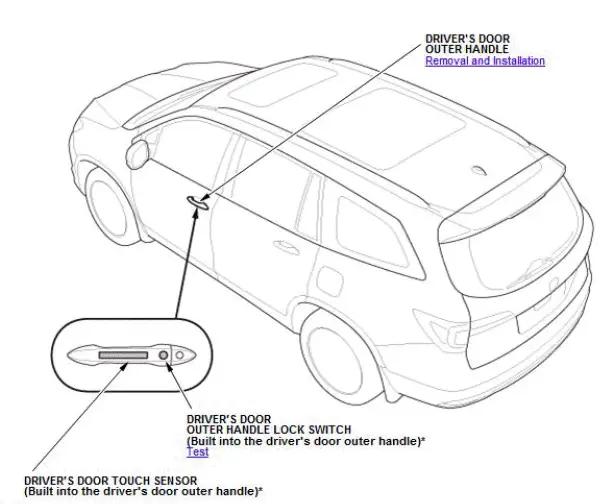

• DRIVER'S DOOR OUTER HANDLE
• DRIVER'S DOOR OUTER HANDLE LOCK SWITCH (Built into the driver's door outer handle)*
• DRIVER'S DOOR TOUCH SENSOR (Built into the driver's door outer handle)*

* With keyless access function

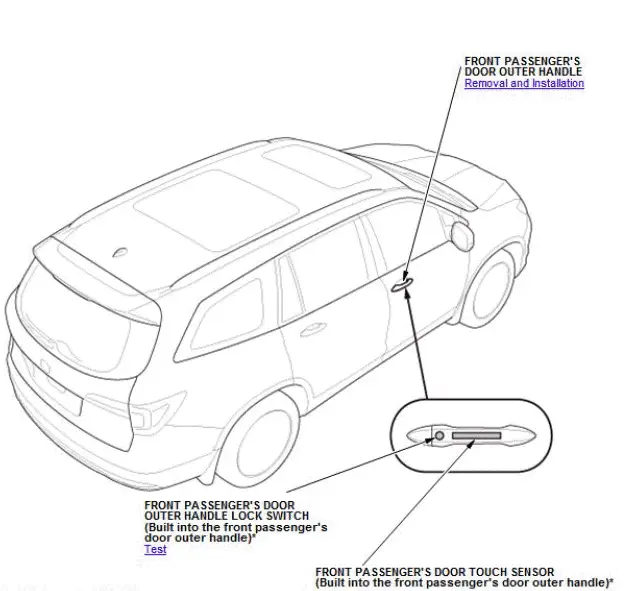

• FRONT PASSENGER'S DOOR OUTER HANDLE
• FRONT PASSENGER'S DOOR TOUCH SENSOR (Built into the front passenger's door outer handle)*
• FRONT PASSENGER'S DOOR OUTER HANDLE LOCK SWITCH (Built into the front passenger's door outer handle)*

* With rear keyless access function
