Honda Pilot: Interior Lights System Description - Control/Function

System Function

Initial state of connection of electric power supply

In the initial state of connection of electric power supply, close/open of each door is detected and controlled without being affected by states of the vehicle mode and the driver's door lock knob switch.

NOTE: The "――" means that not use on this system.

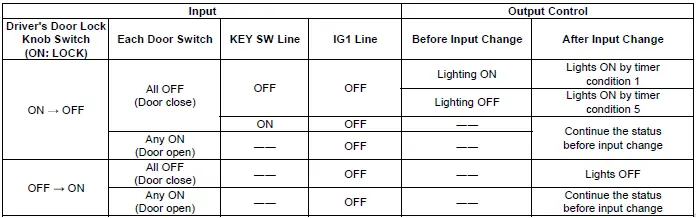

Driver's door lock knob switch link

When the driver's door lock knob switch moves from the lock/unlock position, the MICU detects a driver's door open/close position, and controls the interior lights.

NOTE: The "――" means that not use on this system.

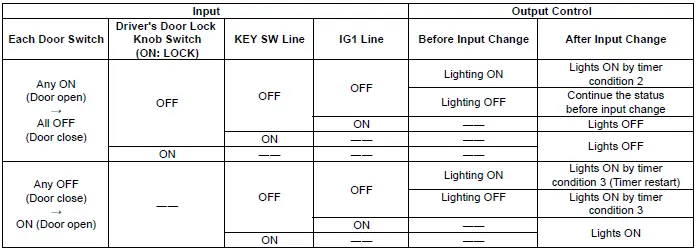

Each door switch link

Anytime a door switch closes (ON signal), the MICU provides a ground to the interior lights.

NOTE: The "――" means that not use on this system.

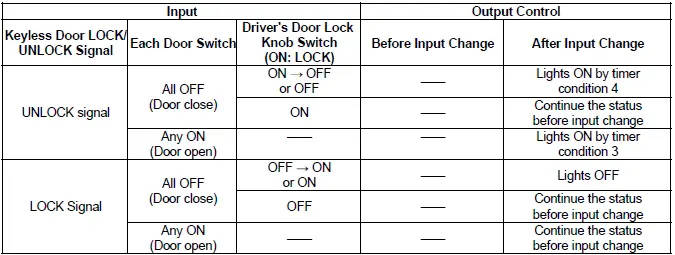

Keyless link

When the MICU receives an unlock signal from the keyless access/TPMS control unit, it provides a ground to the interior lights.

NOTE: The "――" means that not use on this system.

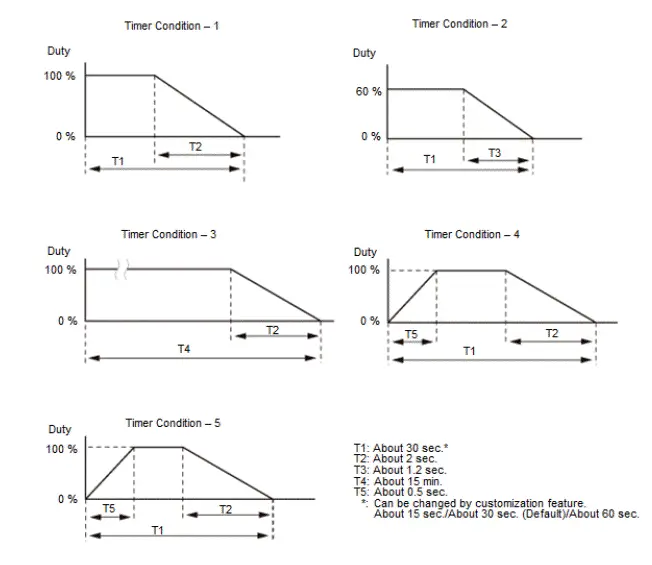

Timer Control

The chart shows lighting duration, along with the dimming function that occurs at the end of the timer period.

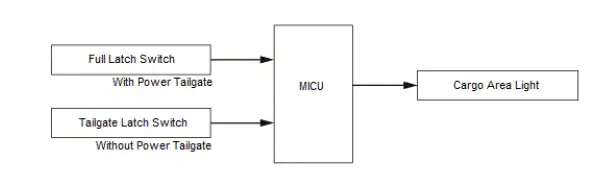

Tailgate Link Control

The MICU controls the cargo area light ON, OFF based on the full latch switch *1 or the tailgate latch switch *2 signal.

*1: With power tailgate
*2: Without power tailgate

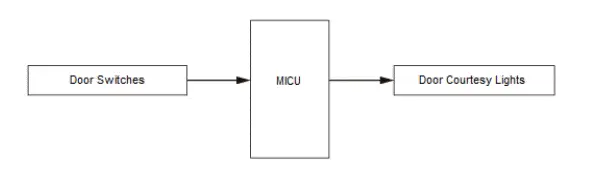

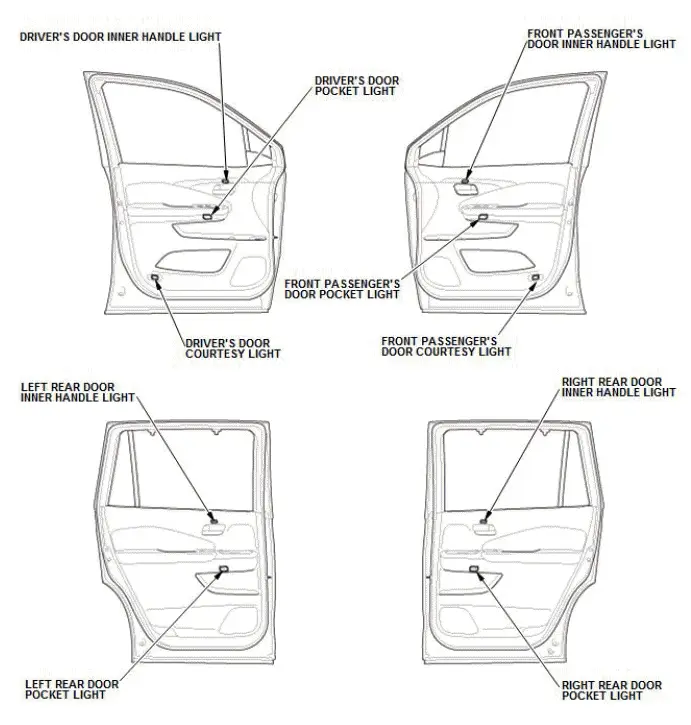

Door Courtesy Light Control

The MICU controls the door courtesy lights ON, OFF based on the driver's and front passenger's door switches signal.

Interior Lights System Description - Overview

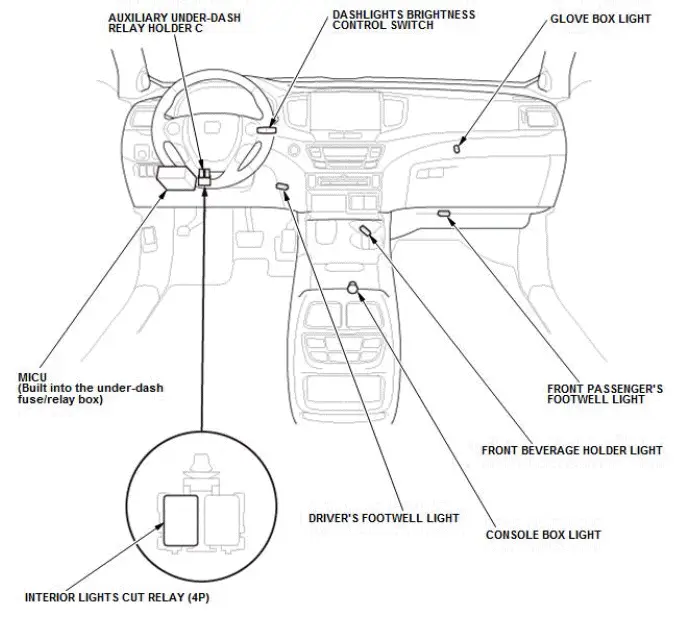

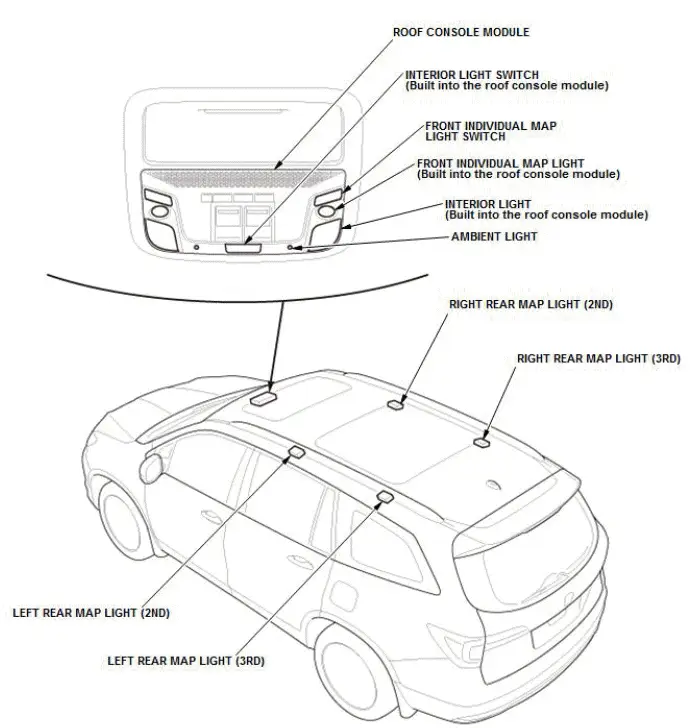

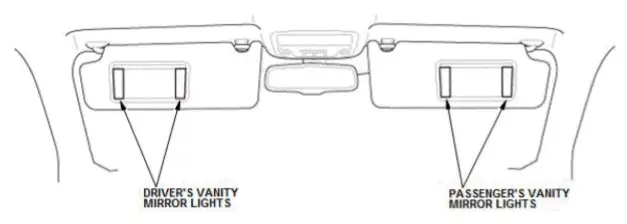

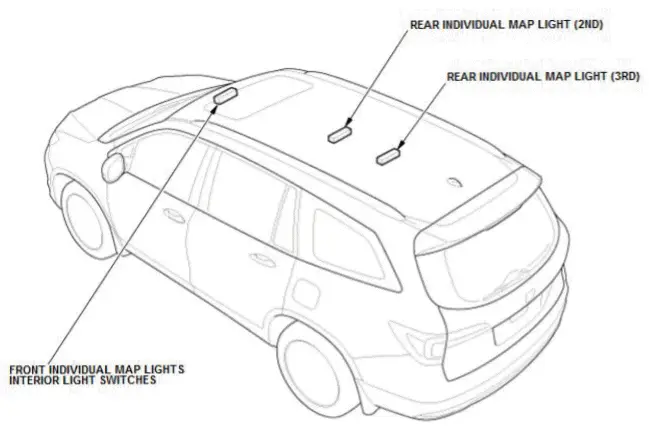

This vehicle is equipped with the map lights, the footwell lights, the beverage holder lights, the cargo area light, the courtesy lights, the door pocket lights, the door inner handle lights, the vanity mirror lights, the console box light, the interior light, and the glove box light.

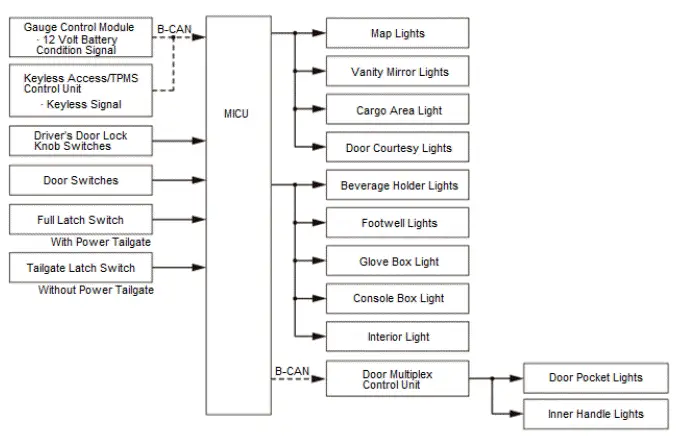

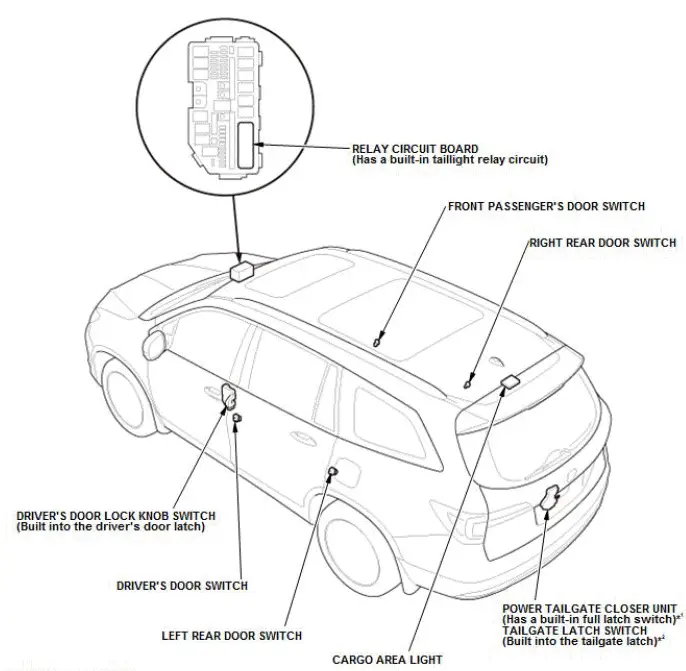

The entry light control system is controlled by the MICU receiving signals from the engine start/stop switch, the door switch of each seat, the driver's door lock knob switch, the full latch switch *1 , the tailgate latch switch *2 , and the B-CAN signal. The interior lights and the map lights are automatically turned on/off.

*1: With power tailgate
*2: Without power tailgate

With panoramic glass roof

Without panoramic glass roof
