Honda Pilot: Interior Trim Removal and Installation - Door Areas

Removal/Installation

Front Door Sill Area

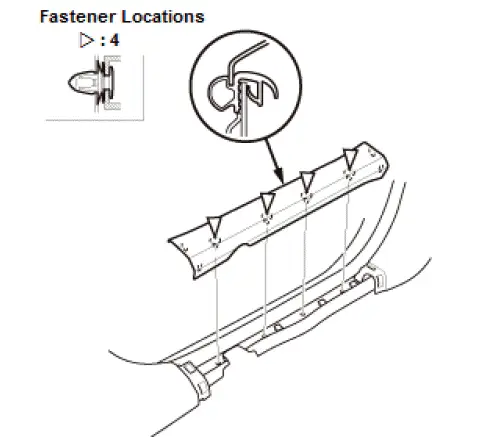

1. Front Door Sill Trim - Remove

2. Passenger's Dashboard Undercover - Remove

3. Kick Panel - Remove

Driver's side

Passenger's side

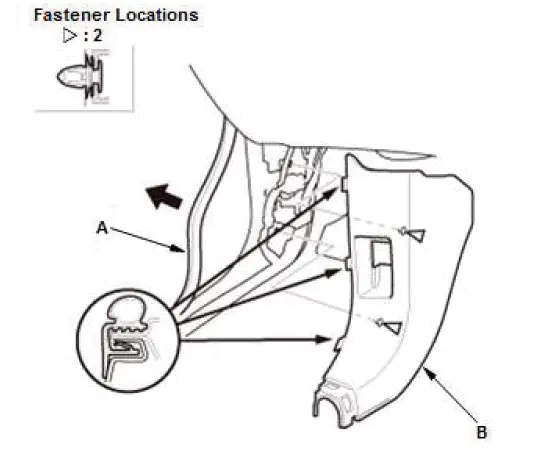

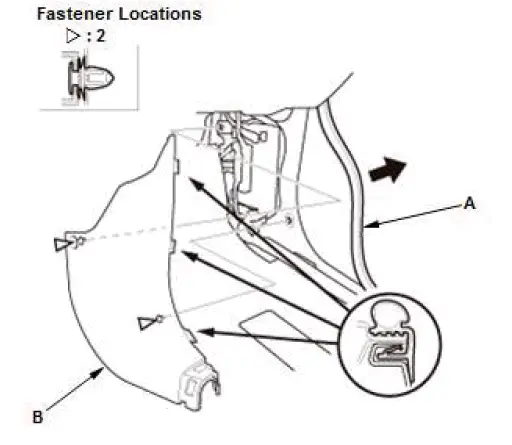

1. Pull out the door opening seal (A) as needed.
2. Remove the kick panel (B).

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Rear Door Sill Area

1. Second Row Seat Front Foot Cover - Remove

2. Rear Door Sill Upper Trim - Remove

1. Slide the second row seat forward.

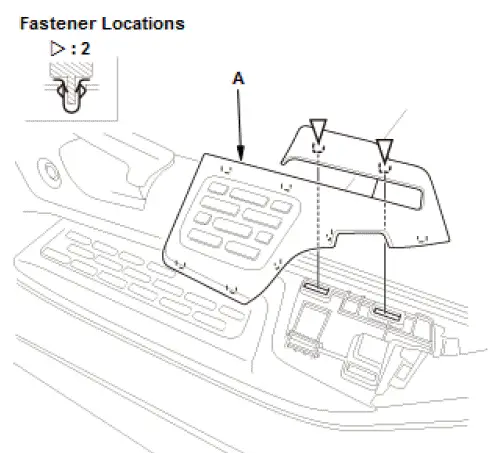

2. Remove the rear door sill upper trim (A).

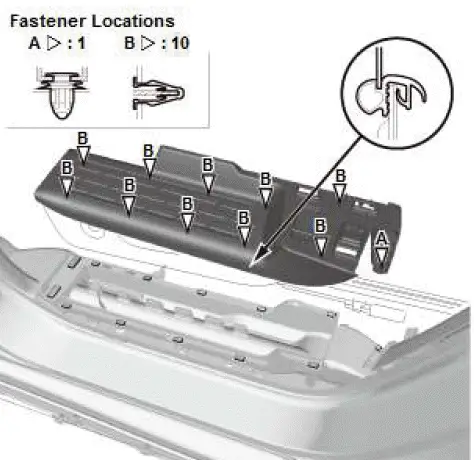

3. Rear Door Sill Middle Trim - Remove

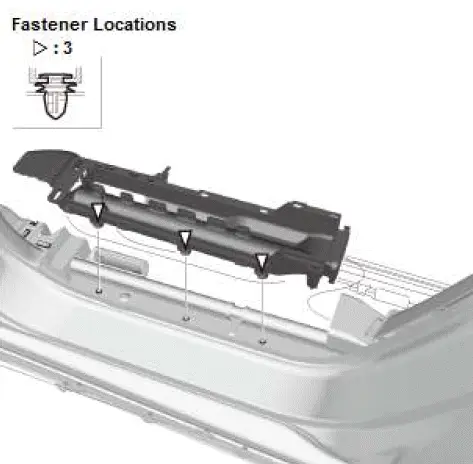

4. Rear Door Sill Lower Trim - Remove

5. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Front Door Opening Seal

1. B-Pillar Lower Trim - Remove

2. Front Door Opening Seal - Remove

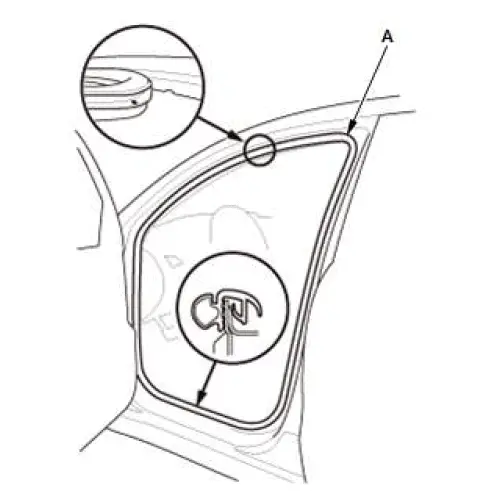

1. Remove the front door opening seal (A).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

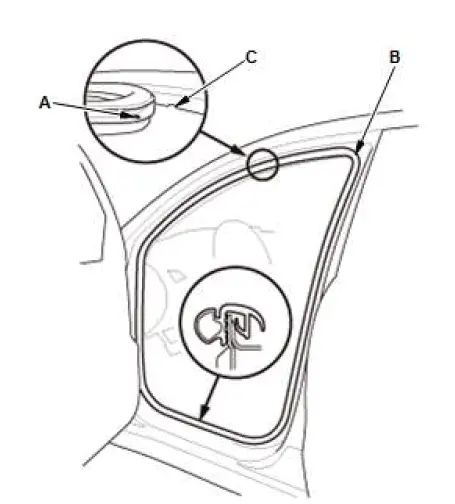

   NOTE: Align the painted mark (A) of the front door opening seal (B) with the notch (C) on the body, and then push the front door opening seal against the body.

Rear Door Opening Seal

1. B-Pillar Lower Trim - Remove

2. Rear Door Opening Seal - Remove

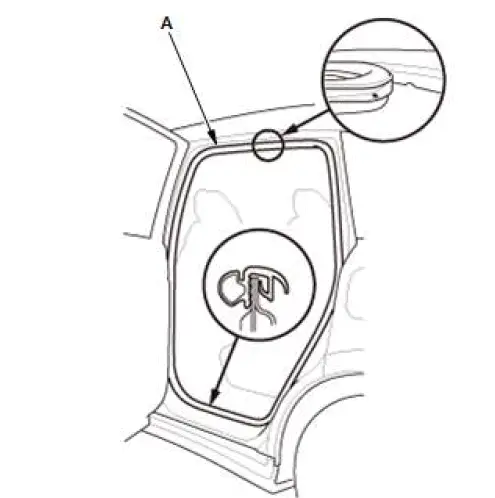

1. Remove the rear door opening seal (A).

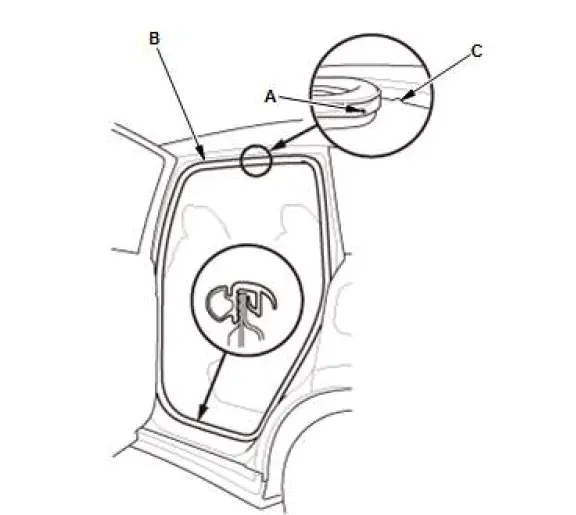

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
