Honda Pilot: LaneWatch Camera Removal and Installation

Removal and Installation

1. Ritht Side Mirror Visor - Remove

2. LaneWatch Camera - Remove

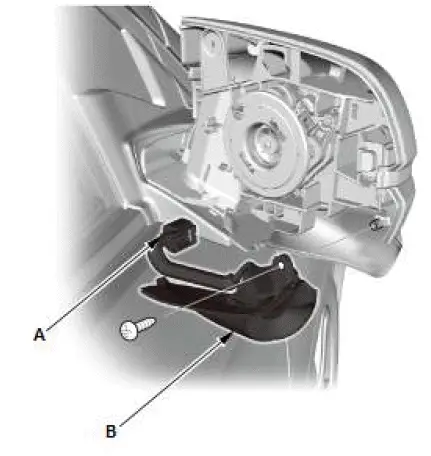

1. Disconnect the connector (A).
2. Remove the camera cover (B).

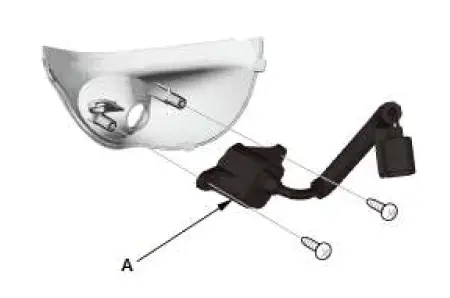

3. Remove the LaneWatch camera (A).

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

LaneWatch Switch Removal, Installation, and Test

Removal/Installation

SRS components are located in this area. Review the SRS component locations, and the precautions and procedures before doing repairs or service.

1. Combination Light Switch - Remove

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Test

1. LaneWatch Switch - Test

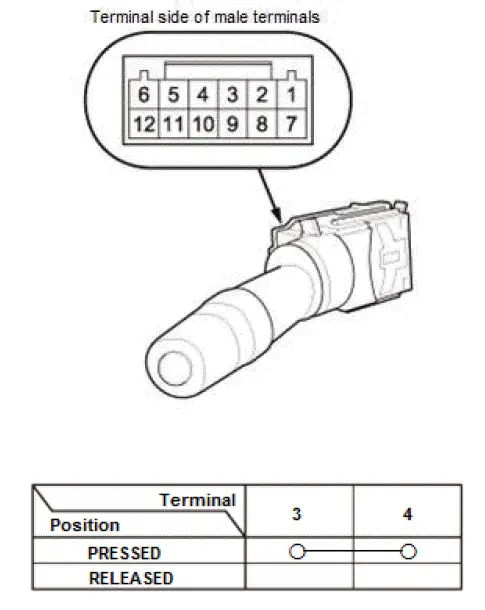

1. On the switch side, check for continuity between the combination light switch 12P connector terminals in each switch position according to the table.
2. If the continuity is not as specified, replace the combination light switch.
