Honda Pilot: License Plate Light Removal and Installation

Removal and Installation

1. Rear License Trim - Remove

2. License Plate Light - Remove

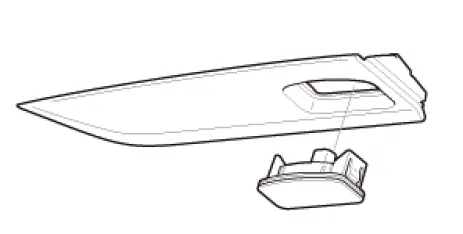

License Plate Light: LED

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Line Pressure Switch Removal and Installation

Removal/Installation

1. Front Bulkhead Cover - Remove

2. Air Intake Tube - Remove

3. Air Cleaner - Remove

4. 12 Volt Battery - Remove

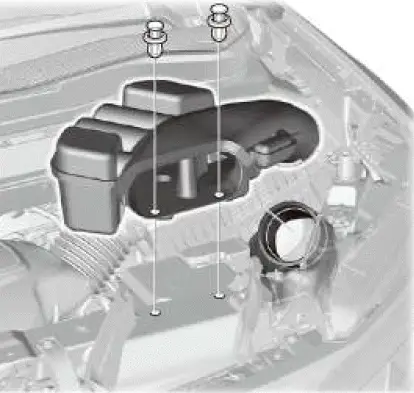

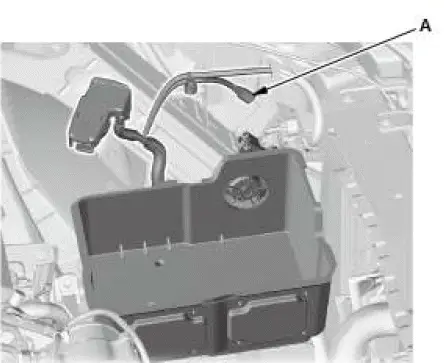

5. 12 Volt Battery Box - Remove

1. Disconnect the connector (A).

6. 12 Volt Battery Duct - Remove

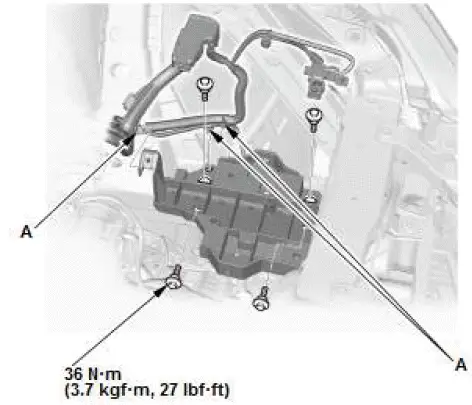

7. Battery Base - Remove

1. Remove the harness clamps (A).

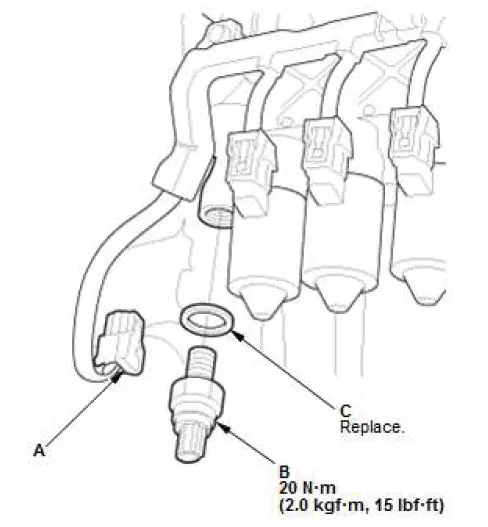

8. Line Pressure Switch - Remove

1. Disconnect the connector (A).
2. Remove the line pressure switch (B) with the sealing washer (C).

9. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
