Honda Pilot: Middle Floor Undercover Removal and Installation

Removal/Installation

1. Vehicle - Lift

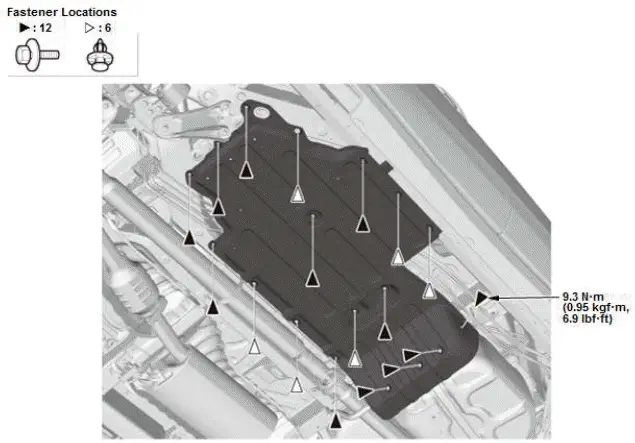

2. Middle Floor Undercover - Remove

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Millimeter Wave Radar Removal and Installation

Removal/Installation

1. Front Bumper - Remove

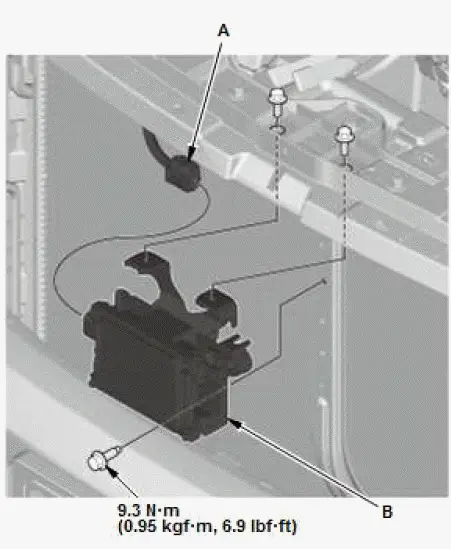

2. Millimeter Wave Radar Assembly - Remove

NOTE: Do not disassemble the millimeter wave radar.

1. Disconnect the connector (A).
2. Remove the millimeter wave radar assembly (B).

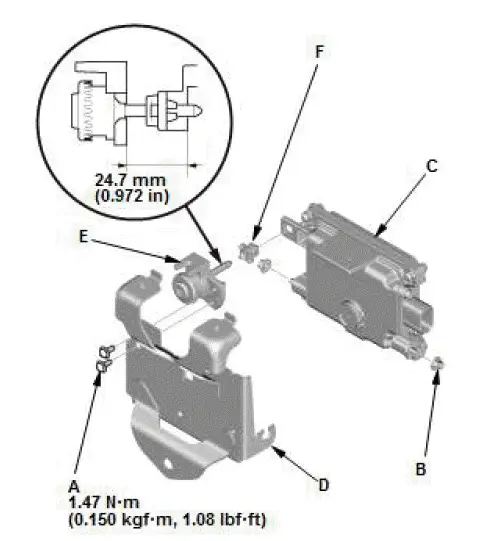

Millimeter wave radar main bracket removal.

3. Remove the screws (A).
4. Remove the millimeter wave radar (C) from the main bracket (D).
5. If necessary, remove these items:

• Spacer B
• Aiming bolt (E)
• Grip (F)

3. Millimeter Wave Radar Bracket - Remove (if necessary)

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

   NOTE: After installing the millimeter wave radar, measure the clearance 24.7 mm (0.972 in) between the millimeter wave radar and its bracket.

   If the clearance is out of the standard, adjust the aiming bolt.

5. Millimeter Wave Radar - Aim
