Honda Pilot: MAP Sensor Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / MAP Sensor Removal and Installation
Removal/Installation
1. Engine Cover - Remove

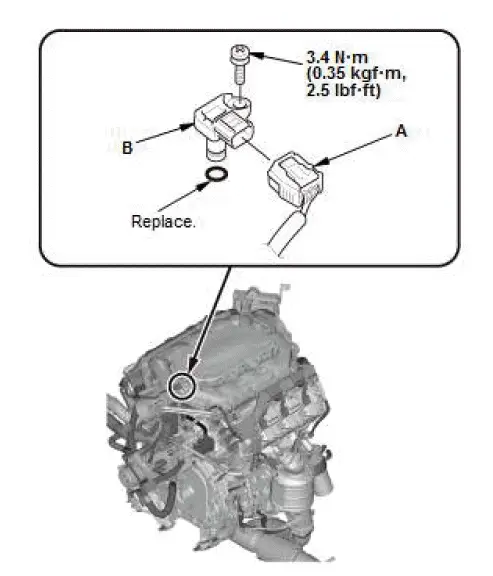

2. MAP Sensor - Remove
- Disconnect the connector (A).
- Remove the MAP sensor (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal with a new O-ring.
Media Hub Unit Removal and Installation
Removal/Installation
1. Passenger's Dashboard Undercover - Remove
2. Passenger's Side Center Console Side Cover - Remove
3. Media Hub Unit - Remove

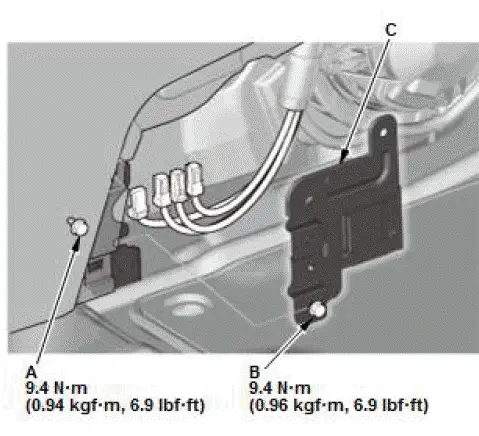

- Remove the bolt (A) and loosen the bolt (B).
- Disconnect the connectors, then remove the media hub unit (C).

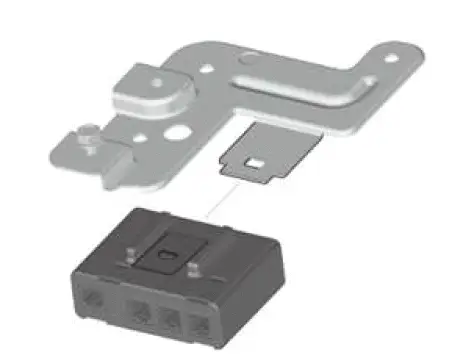

- Remove the bracket.
4. All Removed Parts - Install
