Honda Pilot: Moonroof Electrical Component Location Index

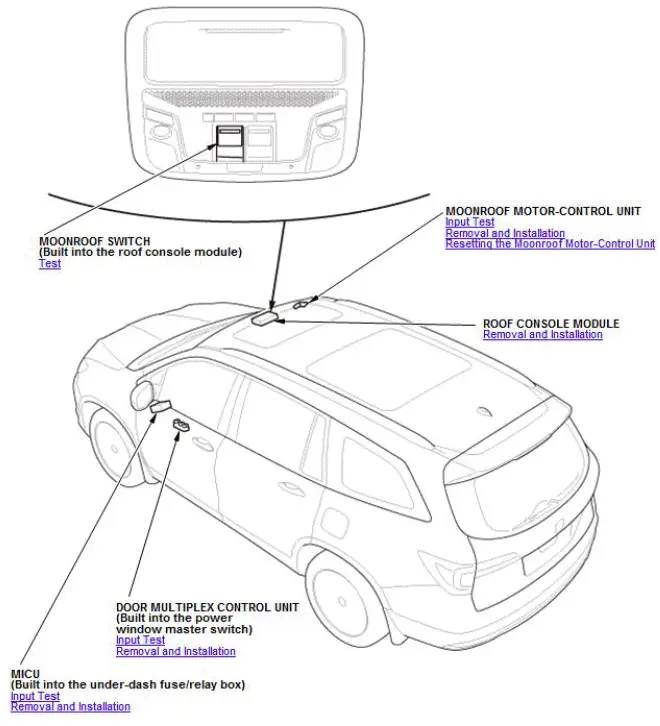

With panoramic glass roof

• MOONROOF SWITCH
• MOONROOF MOTOR/CONTROL UNIT
• ROOF CONSOLE MODULE
• DOOR MULTIPLEX CONTROL UNIT
• MICU (Built into the under-dash fuse/relay box)

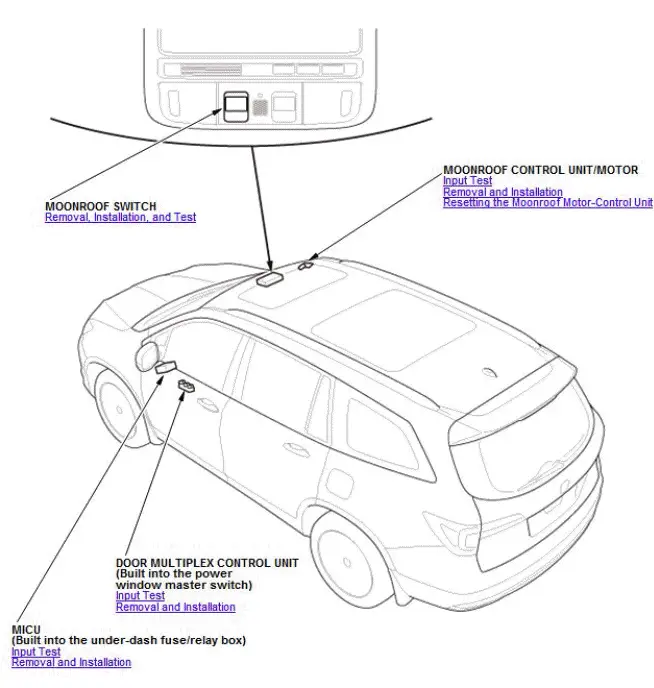

Without panoramic glass roof

• MOONROOF SWITCH
• MOONROOF CONTROL UNIT/MOTOR
• DOOR MULTIPLEX CONTROL UNIT (Built into the power window master switch)
• MICU (Built into the under-dash fuse/relay box)

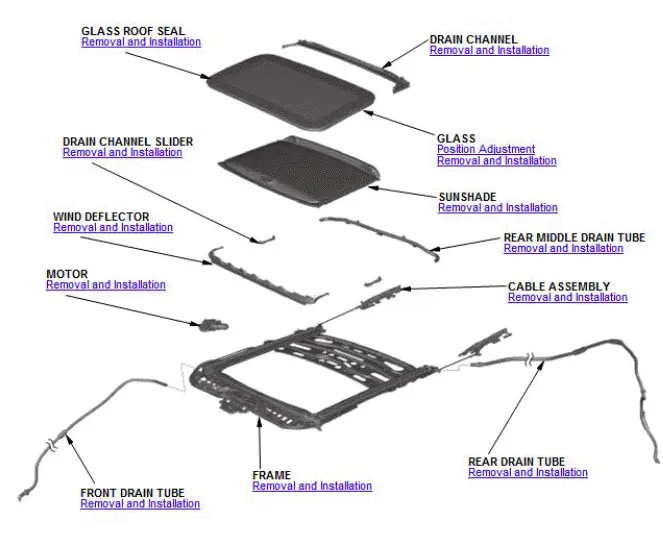

Moonroof Mechanical Component Location Index

• GLASS ROOF SEAL
• DRAIN CHANNEL SLIDER
• WIND DEFLECTOR
• MOTOR
• FRONT DRAIN TUBE
• FRAME
• REAR DRAIN TUBE
• CABLE ASSEMBLY
• REAR MIDDLE DRAIN TUBE
• SUNSHADE
• GLASS
• DRAIN CHANNEL
