Honda Pilot: Multiplex Integrated Control System Component Location Index
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Component Location Index Info / Multiplex Integrated Control System Component Location Index

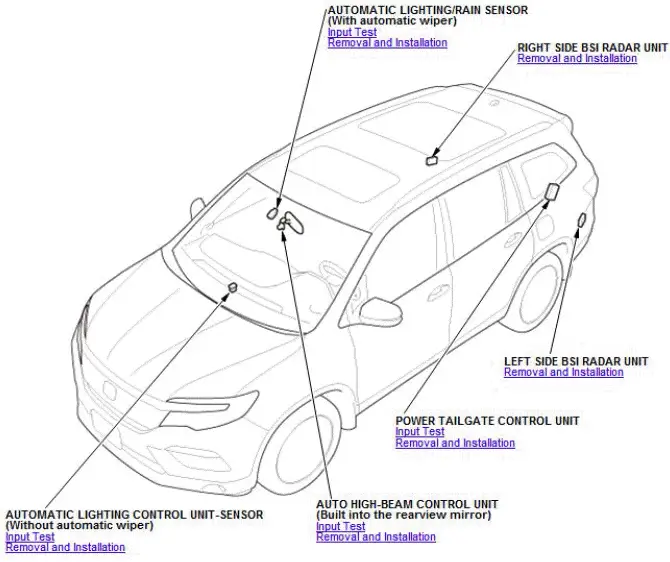

- AUTOMATIC LIGHTING/RAIN SENSOR (With automatic wiper)
- RIGHT SIDE BSI RADAR UNIT
- LEFT SIDE BSI RADAR UNIT
- POWER TAILGATE CONTROL UNIT
- AUTO HIGH-BEAM CONTROL UNIT (Built in to the rearview mirror)
- AUTOMATIC LIGHTING CONTROL UNIT-SENSOR (Without automatic wiper)

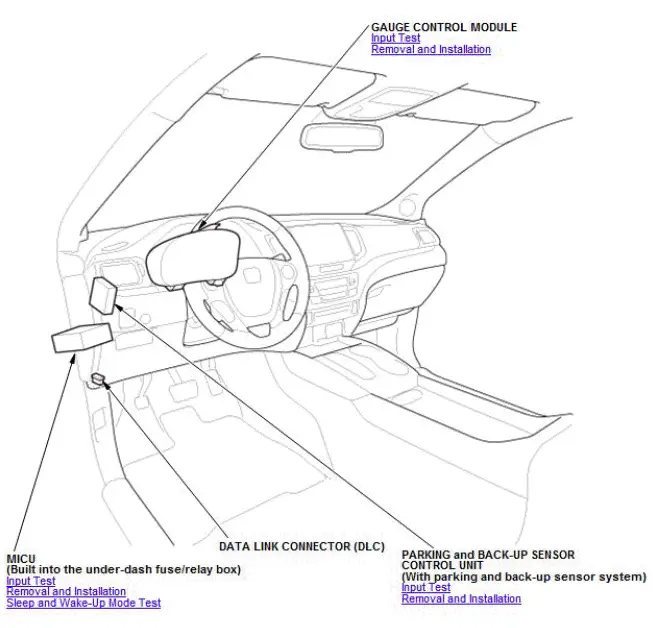

- GAUGE CONTROL MODULE
- MICU (Built into the under-dash fuse/relay box)
- DATA LINK CONNECTOR (DLC)
- PARKING and BACK-UP SENSOR CONTROL UNIT (With parking and back-up sensor system)

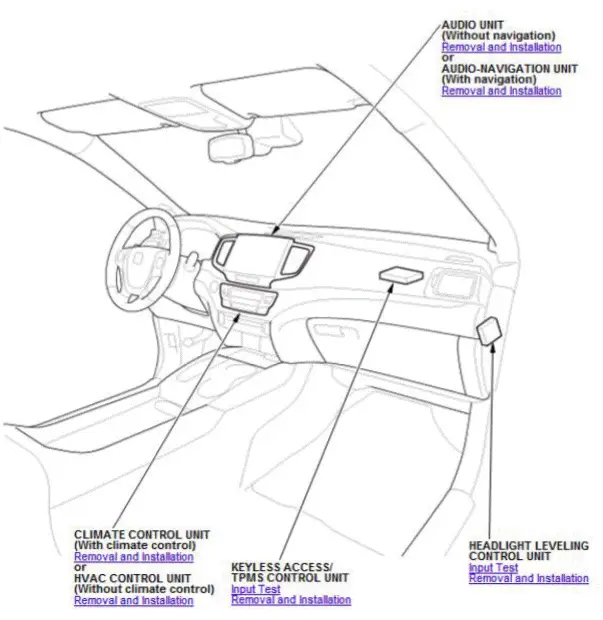

- AUDIO UNIT (Without navigation) or AUDIO-NAVIGATION UNIT (With navigation)
- HEADLIGHT LEVELING CONTROL UNIT
- KEYLESS ACCESS/ TPMS CONTROL UNIT
- CLIMATE CONTROL UNIT (With climate control) or HVAC CONTROL UNIT (Without climate control)

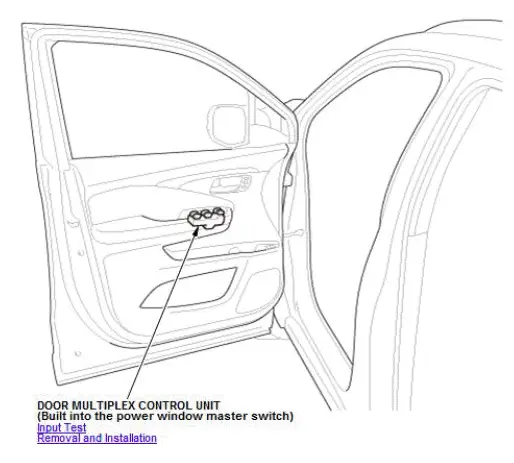

- DOOR MULTIPLEX CONTROL UNIT

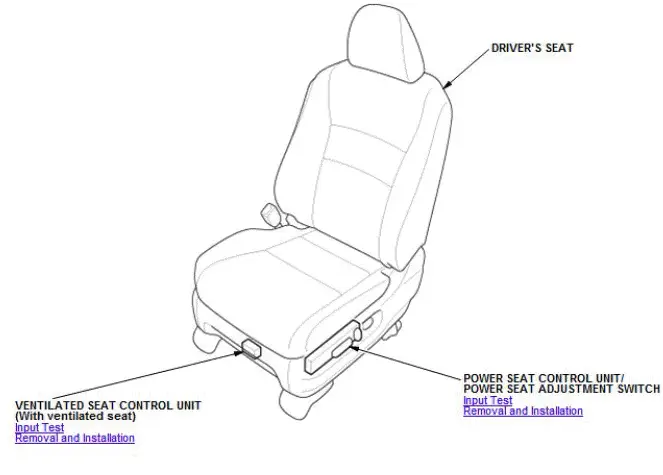

- DRIVER'S SEAT
- POWER SEAT CONTROL UNIT/ POWER SEAT ADJUSTMENT SWITCH
- VENTILATED SEAT CONTROL UNIT

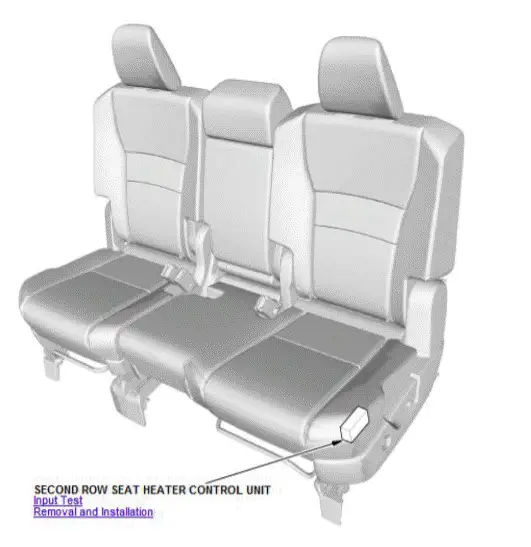

- SECOND ROW SEAT HEATER CONTROL UNIT
